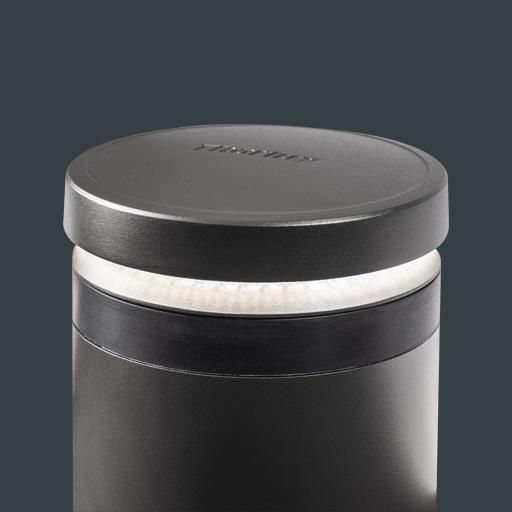

The Passway is a lighting bollard designed to protect itself and those around it. A contemporary, highly robust and optically refined LED bollard with an abundance of unique features Contained within the IP66, IK10 head unit, custom designed, high performance optics direct the light exactly where it is needed. A dedicated lens for each LED ensures the most efficient distribution of light resulting in highly impressive luminaire spacings whilst still maintaining uniformity. A choice of two distribution options are available. The area distribution provides 360° light output whilst the pathway distribution gives 180°. All versions have less than 2% upward light component making Passway suitable for rural as well as urban environments.
Equipo disponible | Potencia nominal de lámpara | Flujo de lámpara | Eficiencia luminosa | CCT | CRI |
---|---|---|---|---|---|
1 x LED | 5 W | 450 lm | 50 lm/W | 4000 K | 70 |
Tipo de Montaje
Bolardos
Forma y medidas
Altura ajustable: 850 mm
Diámetro: 165 mm
Ajustabilidad
Fijo
Eléctrico
Potencia: 9 W
Protección
IP: 66

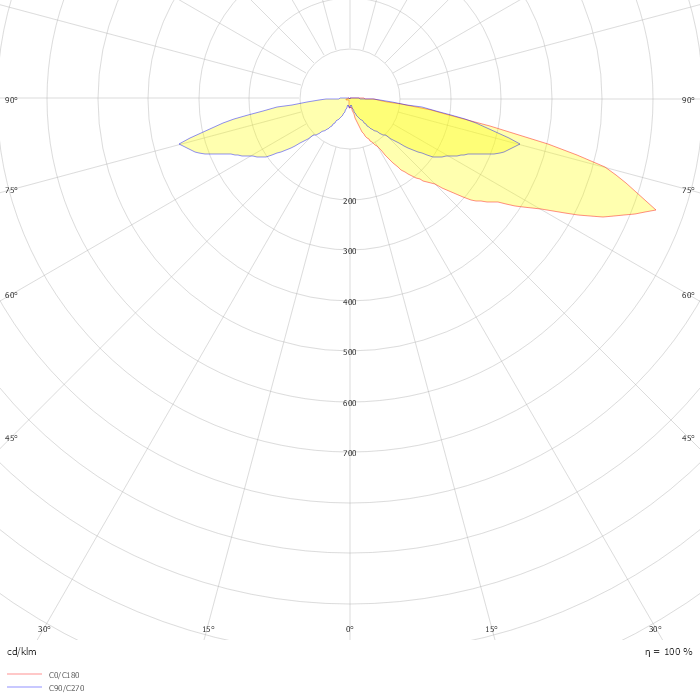

Dato fotométrico
ZIP file
