Hoja de dato de productos

Panel WLP-Tunable 5000K 40W DALI

7018294

Westal

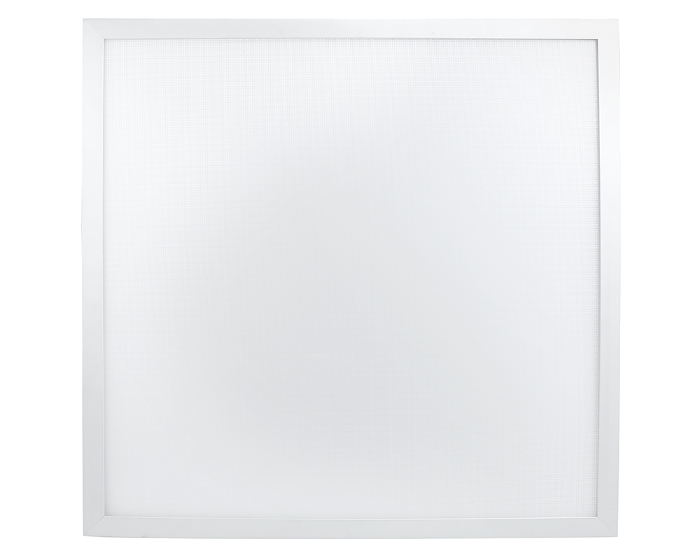

Recessed LED panel with aluminum frame and glare protection in microprismatic PMMA. Well-dimmed luminaire UGR <19 with spreading angle of 80 °. With a Dali type 8 driver, you can control both the color temperature and the light emission of the luminaire via a DALI system. In this way, it is possible to adapt to the circadian rhythm, so-called HCL (humen centric lighting). For mounting in suspended ceilings 600x600. Supplied with a separate DALI type 8 driver that is connected via quick connector. Delivered including 2m cord stand. Suitable for offices, corridors, changing rooms etc. .

Tipo de lámpara Potencia nominal de lámpara Flujo total Eficiencia luminosa CCT CRI
LED 40 W 4050 lm 101 lm/W 5000 K 80
Panel WLP-Tunable 5000K 40W DALI

Panel WLP-Tunable 5000K 40W DALI

Emisión de luz 1 (integrada)

LED

Tipo de Montaje

Empotrado en techo

Forma y medidas

Longitud: 595 mm

Anchura: 595 mm

Altura ajustable: 8 mm

Ajustabilidad

Fijo

Eléctrico

Potencia: 40 W

Clases de aislamiento: I

Protección

IP: 20

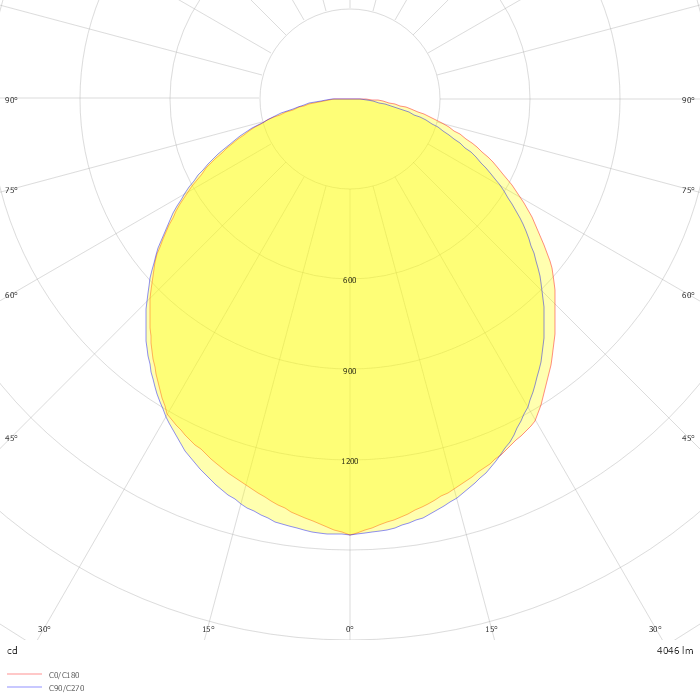

Dato fotométrico

ZIP file
