Hoja de dato de productos

DEECOS P mini

911513.002

RZB

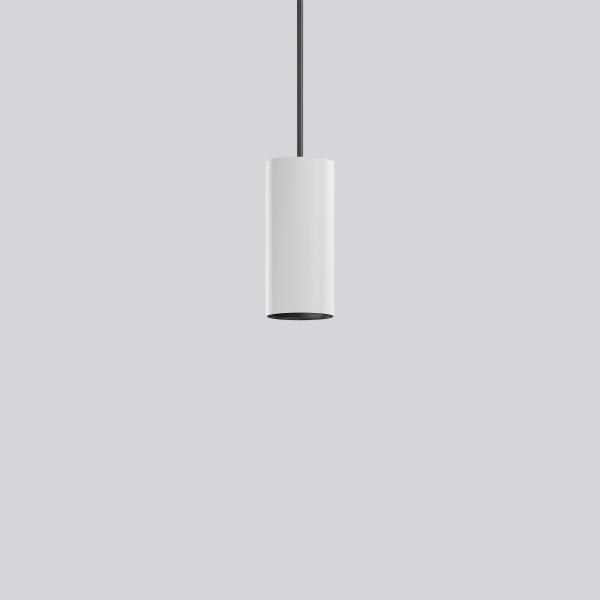

Series: DEECOS P mini Cylindrical pendant luminaire. Housing: die-cast aluminium, powder-coated. Canopy made of powder-coated sheet steel with magnetic attachment. Optical assembly with reflector made of MIRO-Silver with 98% total light reflection for outstanding efficiency - can be changed without tools. Best colour rendering index Ra>90. Transparent pendant cable 5 m, can be shortened, with integrated steel cable. High quality converter without flickering and stroboscopic effect. The following accessories can be mounted without use of tools: interchangeable lenses, honeycomb louvre, clear and frosted diffusers, white interchangeable plastic ring. Decorative recessed suspension set available as accessory.Suitable for accessory Deecos P Tube cylinder extensions 0.5 m, 0.75 m or 1 m. Colour: traffic white, matt (RAL 9016) Diameter: 87 mm Height: 195 mm Suspension length: 5000 mm Lamp: LED Socket: without socket Colour temperature: 3000K Colour rendering index (CRI): 92 System power: 20 W Rated luminous flux: 2500 lm Beam angle Down: 18° Luminous efficiency: 125 lm/W Control gear: Regulated power supply Protection class: I Type of protection: IP 20

Tipo de lámpara Potencia nominal de lámpara Flujo total Eficiencia luminosa CCT CRI
LED 20 W 1470 lm 74 lm/W 4000 K 80
DEECOS P mini

DEECOS P mini

Emisión de luz 1 (integrada)

LED

Tipo de Montaje

Pendular

Forma y medidas

Altura ajustable: 195 mm

Diámetro: 87 mm

Ajustabilidad

Fijo

Diseño

Color de carcasa: Blanco

Eléctrico

Potencia: 20 W

Protección

IP: 20

IK: 06

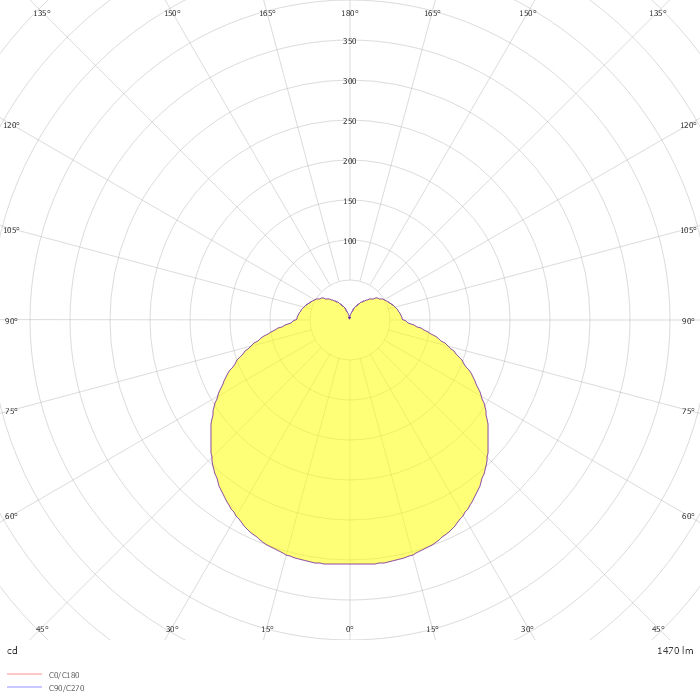

Dato fotométrico

ZIP file
