Hoja de dato de productos

DOWNLIGHTS - Comfort Evo 3000K

ACOM1/1 + ACOM/TR/W/1 + AHUEMKIT/LI (13W 3000K)

Ansell Lighting

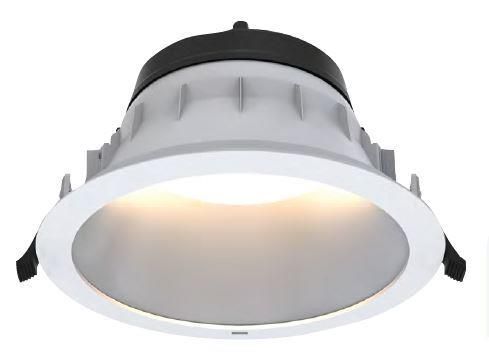

ACOM1/1 + ACOM/TR/W/1 + AHUEMKIT/LI Comfort Evo • Economic high performance CCT selectable IP44 downlight suitable for commercial and healthcare applications • Intelligent and eco-friendly 3 part design allows end user the choice of either black or white reflector and trim accessories to add to the downlight (ACOM*/1), offering great customisation and product upgradability • Deep cut-off angle for glare control and comfort • CCT selectable between 3000K and 4000K and power selectable; offering a choice of 2 outputs, in one luminaire • Downlight design allows installation into existing hole cut-outs of 210mm • Anti-Ligature kit available for installation in secure environments such as healthcare and educational facilities • Polycarbonate housing with unique thermal management for durability and optimum lifespan • Dimmable and Emergency options, standard and Self-Test Emergency available using the Hawk Kit Emergency Pack • LED lifespan L80 60,000 hours • Suitable for internal use only • 5 Year Product Warranty • IP44

Equipo disponible Potencia nominal de lámpara Flujo de lámpara Eficiencia luminosa CCT CRI
1 x LED 3 W 290 lm 97 lm/W 3000 K 70
DOWNLIGHTS - Comfort Evo 3000K

DOWNLIGHTS - Comfort Evo 3000K

Emisión de luz 1 (emergencia)

1 x LED

Equipo disponible Potencia nominal de lámpara Flujo de lámpara Eficiencia luminosa CCT CRI
1 x LED 13,11 W 1622 lm 124 lm/W 3000 K 80
DOWNLIGHTS - Comfort Evo 3000K

DOWNLIGHTS - Comfort Evo 3000K

Emisión de luz 2

1 x LED

Tipo de Montaje

Empotrado en techo

Forma y medidas

Altura ajustable: 1 mm

Diámetro: 230 mm

Ajustabilidad

Fijo

Diseño

Diseñador(a): Dominic Harkness

Eléctrico

Potencia: 16,11 W

Información sobre funciones emergentes

Iluminación de emergencia suplementaria

Señal de emergencia: N/A

Protección

IP: 44

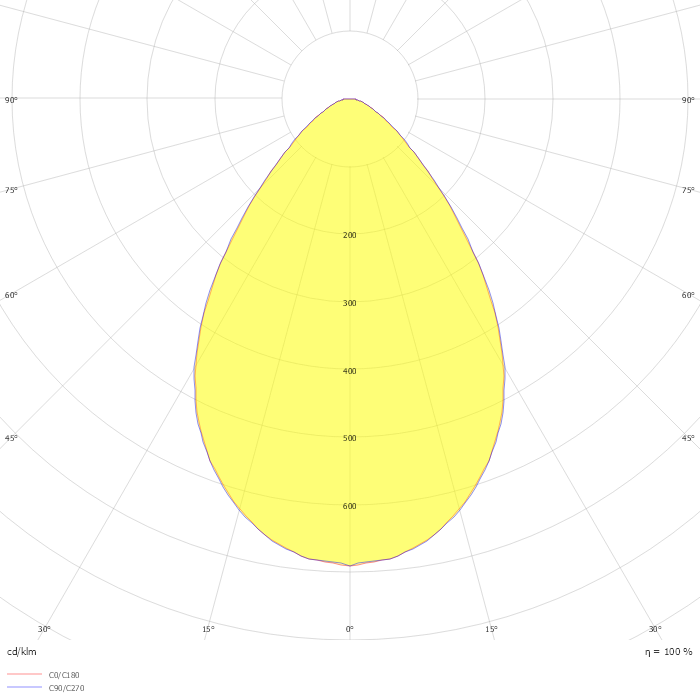

Dato fotométrico

ZIP file
