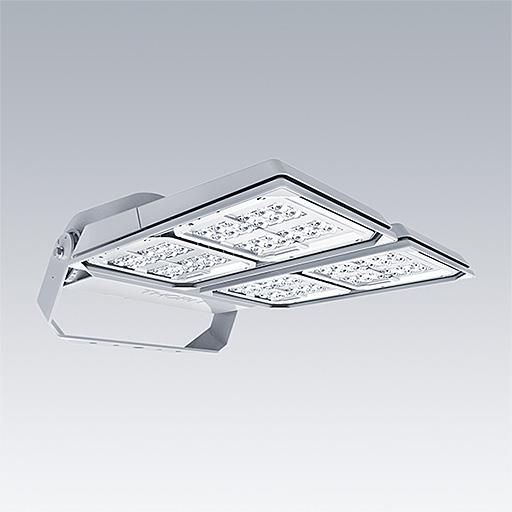

A compact, lightweight, general purpose LED area floodlight. With large body. LED converter configured for power reduction, effective 3 hours before and 5 hours after a calculated midnight, driving 144 LEDs at 700mA with asymmetrical 60° light distribution. IP66, IK08, Class I electrical. Body: die-cast aluminium (EN AC-46000), painted grey (RAL9006). Enclosure: 4mm thick toughened glass. Reversable mounting stirrup supplied, optional spigot adaptors available separately for post top mounting. Complete with 4000K LED. Dimensions: 658 x 490 x 139 mm Total power: 308 W Luminaire luminous flux: 37145 lm Luminaire efficacy: 121 lm/W weight: 18.52 kg Scx: 0.073 m²
Tipo de lámpara | Potencia nominal de lámpara | Flujo total | Eficiencia luminosa | CCT | CRI |
---|---|---|---|---|---|
LED | 308 W | 37145 lm | 121 lm/W | 3000 K | 70 |
Tipo de Montaje
Montaje en techo
Forma y medidas
Longitud: 658 mm
Anchura: 490 mm
Altura ajustable: 139 mm
Peso: 18,5 kg
Diseño
Impresión de Material: Aluminio
Color de carcasa: Gris plateado
Eléctrico
Potencia: 308 W
Voltaje: 230 V AC
Clases de aislamiento: I
Protección
IP: 66
IK: 08
Certificados: CE, ENEC

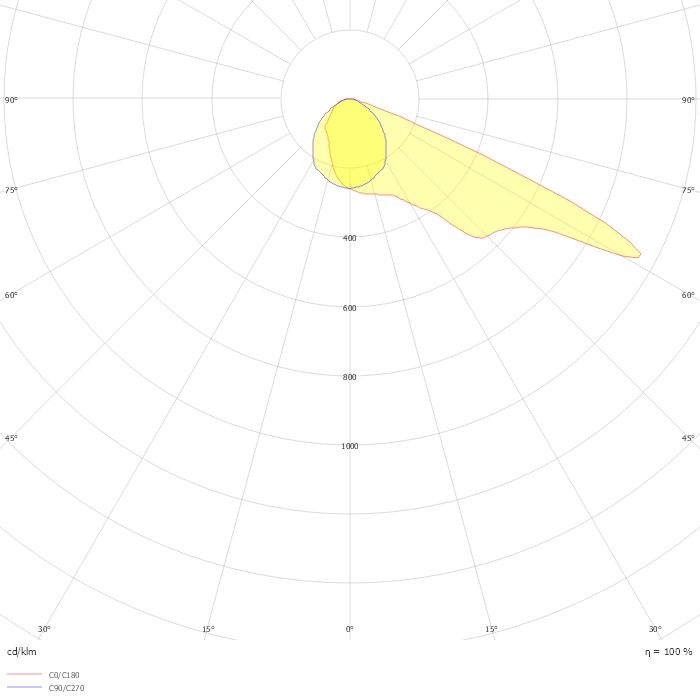

Dato fotométrico
ZIP file
