Hoja de dato de productos

Street lighting

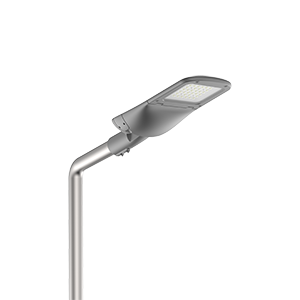

V1-S1-70496-40L34-6605050 Tornado Plaza 50W 5000K

VARTON

LED street light luminaire. Tool-free access to the driver. Adjustable spigot. Cast aluminum housing, tempered protective glass. Application: squares and parkings. Installation: pole and side-entry mounted (Ø48mm-60mm). AC frequency, Hz: 50 Flicker, %: 3 Climatic modification and category of placement: УХЛ1 Protection class: I Suitable for top end size, mm: 48...60 Mounting method: Side-entry Ingress protection (IP): IP66 Impact resistance: IK09 Power factor: 0,97 Color rendering index: 70-79 Nominal voltage, V: 220...230 https://www.varton.ru/products/ulichnoe-osveshchenie/tornado/tornado-plaza-dlya-ploshchadi/svetodiodnyy-svetilnik-varton-ulichnyy-tornado-plaza-50-vt-kreplenie-na-konsol-5000-k-ral7045-seryy-/

Equipo disponible Potencia nominal de lámpara Flujo de lámpara Eficiencia luminosa CCT CRI
1 x LED 50 W 7250 lm 145 lm/W 5000 K 70
Street lighting

Street lighting

Emisión de luz 1

1 x LED

Tipo de Montaje

Mástil integrado

Forma y medidas

Longitud: 628 mm

Anchura: 266 mm

Altura ajustable: 99 mm

Ajustabilidad

Fijo

Eléctrico

Potencia: 50 W

Protección

IP: 66

IK: 09

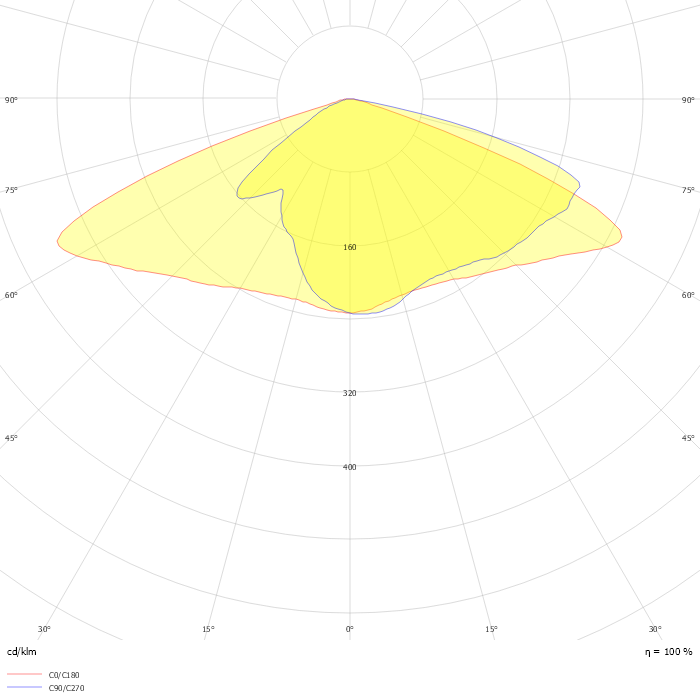

Dato fotométrico

ZIP file
