- Lamp LED - CRI Ra > 80 - MacAdam Ellipse 3 SDCM - Colour 3000K and 4000K - Life time L90B10 Ta 25° C 200,000, 300,000 - Life time L80B10 Ta 50° C 490,000, > 500,000 - Die-cast aluminium housing pre-treated before powder coating ensuring high corrosion resistance - Stainless steel frame - Single cable entry - Through wiring on request - Stainless steel fasteners in grade 316 - High-efficiency PMMA lens - Durable silicone rubber gasket - Clear or frosted toughened glass 15mm - Integral control gear - Recessing box in high density polyethylene is included - Suitable for drive-over with a maximum load of 2000 kg - Vehicles with pneumatic tires can drive over the luminaire but the speed must not exceed 50 km/h - Load is transferred by the housing to the foundation - The distance between the floodlight and the illuminated surface should be at least 05 m
| Tipo de lámpara | Potencia nominal de lámpara | Flujo total | Eficiencia luminosa | CCT | CRI |
|---|---|---|---|---|---|
| LED | 29,3 W | 3098 lm | 106 lm/W | 4000 K | 80 |
Tipo de Montaje
Bolardos, Empotrado en suelo
Forma y medidas
Altura ajustable: 145 mm
Diámetro: 286 mm
Peso: 7 kg
Ajustabilidad
Fijo
Diseño
Color de carcasa: Negro, Blanco, Gris plateado
Anti-glare
Anti-glare: Prevención de deslumbramiento: UGR < 19
Eléctrico
Potencia: 29,3 W
Balastos: ECG
Control: Regulable 1..10V, DALI
Clases de aislamiento: I
Protección
IP: 67
IK: 10
Temperatura de superficie: 40 °C

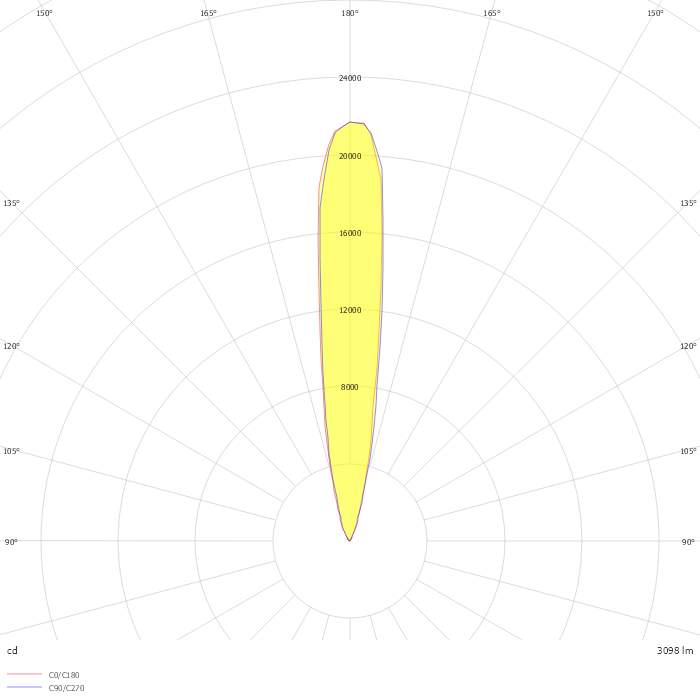

Dato fotométrico
ZIP file
