Hoja de dato de productos

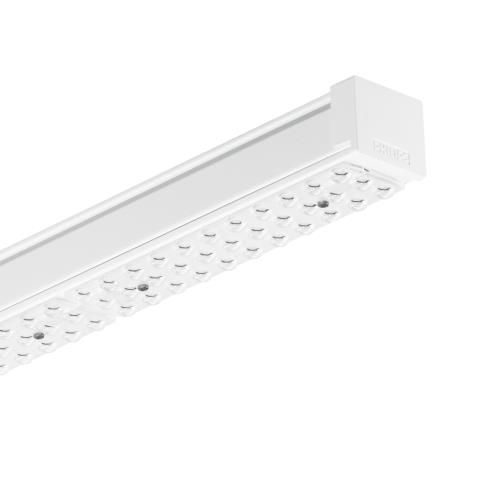

Maxos LED inserts for TTX400 4MX400 G3 581 1xLED80S/830 PSU WB

4MX400

Philips

Maxos LED inserts for TTX400 – efficiency champion with great payback Customers in the industrial and retail sectors are looking for general lighting solutions with a justifiable payback, while meeting all relevant norms for supermarkets and industry applications. For a limited investment, Maxos LED inserts for TTX400 offer best-in-class energy savings while delivering high lux levels at the required color temperatures and glare factors. The minimalistic Maxos LED inserts for TTX400 comprise exchangeable mid-power LED boards to be mounted on a standard TTX400 trunking rail. A choice of wide, medium and double asymmetric beam lenses means flexibility in light distribution. Compared with a conventional fluorescent installation, this highly efficient LED solution offers full payback in less than three years. And the benefits keep coming: our upgradable LED engine platform makes Maxos LED inserts for TTX400 a truly future-proof solution.

Tipo de lámpara Potencia nominal de lámpara Flujo total Eficiencia luminosa CCT CRI
LED 64 W 8000 lm 125 lm/W 3000 K 80
Maxos LED inserts for TTX400 4MX400 G3 581 1xLED80S/830 PSU WB

Maxos LED inserts for TTX400 4MX400 G3 581 1xLED80S/830 PSU WB

Emisión de luz 1 (integrada)

LED

Tipo de Montaje

Montaje en techo

Forma y medidas

Longitud: 1531 mm

Anchura: 64 mm

Altura ajustable: 77 mm

Eléctrico

Potencia: 64 W

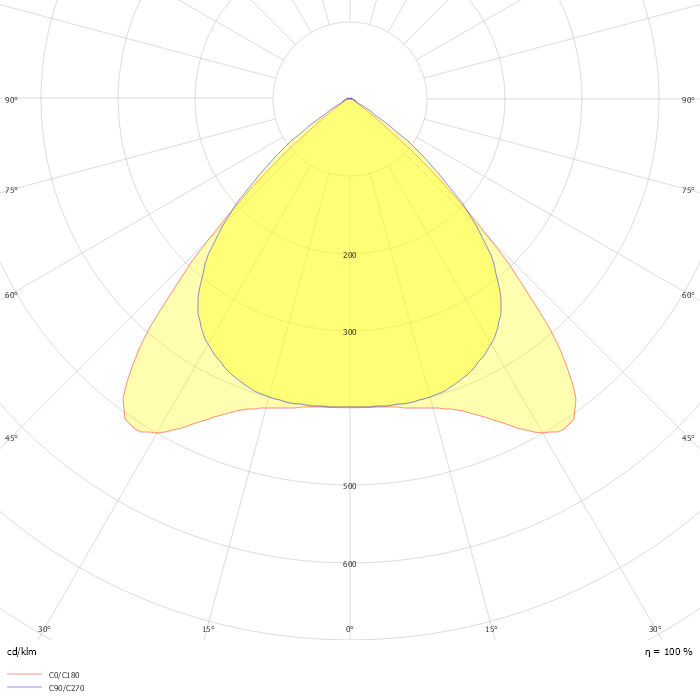

Dato fotométrico

ZIP file
