Hoja de dato de productos

LD38 15.3W 500mA NB GS

LD38-C1-500-LW30-100-NB-GS-900

LightGraphix

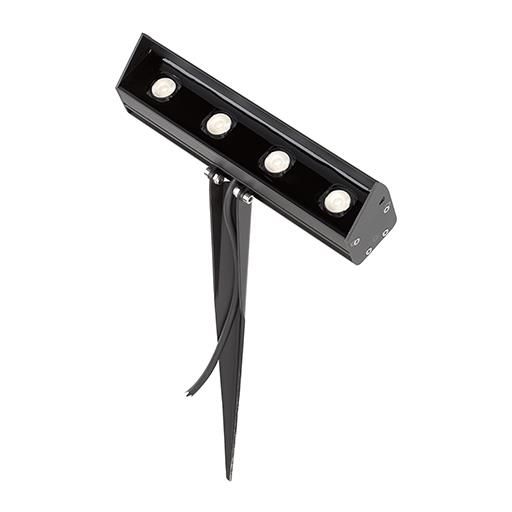

LD38 Surface linear light IP67. Constant Current 15.3W 500mA 12° Narrow beam with Ground spike. LD38 is a high-power linear surface grazer offering superb continuous wall washing capabilities. Compact with a minimal design, set lengths are available to a maximum of 1350mm, with evenly maintained spacing across LEDs, resulting in no shadows. White, RGBW and Tunable White engines are available along with a choice of optics for wall washing or flood lighting, various mounting options and glare control accessories, offering great flexibility for a variety of applications. For additional glare control, LD38C can be specified and is supplied with an integrated anti-glare cowl.

Equipo disponible Potencia nominal de lámpara Flujo de lámpara Eficiencia luminosa CCT CRI
1 x LED 15,3 W 1219 lm 80 lm/W 3000 K 93
LD38 15.3W 500mA NB GS

LD38 15.3W 500mA NB GS

Emisión de luz 1

1 x LED

Tipo de Montaje

Montaje en el cima de mástil

Forma y medidas

Longitud: 900 mm

Anchura: 40 mm

Altura ajustable: 34 mm

Ajustabilidad

Ajuste sin restricciones

Diseño

Impresión de Material: Vidrio, Brillo, Mate, Acero inoxidable

Color de carcasa: Negro, Blanco, Antracita / Grafito, Gris plateado

Eléctrico

Potencia: 15,3 W

Control: Regulable 0..10V, Regulable 1..10V, DMX, DALI

Clases de aislamiento: III

Protección

IP: 67

Certificados: CE

Otros números operativos

Intervalo de temperatura ambiente: -20...50 °C

Dato fotométrico

ZIP file
