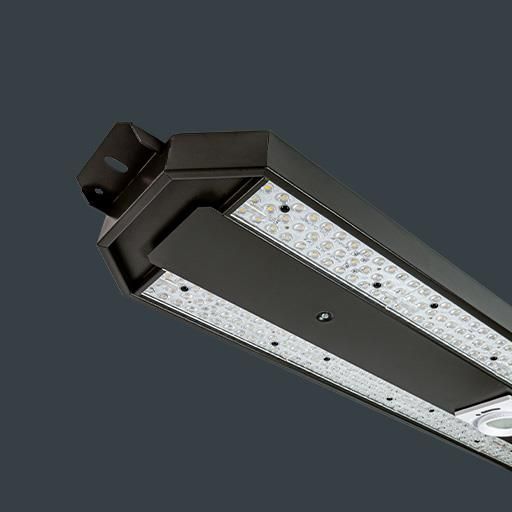

The Visio exemplifies the supreme performance that is expected of Thorlux luminaires providing up to 49,760 lumens and an efficiency of up to 170.1 luminaire lumens per circuit watt. The Visio is available in five wattages and four light distributions ensuring there is a solution for a wide range of mounting heights, spacings and applications. Extremely long life, fast installation and easy maintenance of integral emergency versions are key features of Visio. SmartScan versions have a unique sensor that can be optimised for use up to 18m, maintaining excellent occupancy detection. SmartScan "wireless" versions eliminate the requirement for control cabling often associated with retro-fit installations. Applications: General open factory areas, storage, high level racking aisles, retail and commercial areas.
Tipo de lámpara | Potencia nominal de lámpara | Flujo total | Eficiencia luminosa | CCT | CRI |
---|---|---|---|---|---|
LED | 264 W | 43100 lm | 163 lm/W | 4000 K | 80 |
Tipo de Montaje
Montaje en techo, Pendular
Forma y medidas
Longitud: 2008 mm
Anchura: 227 mm
Altura ajustable: 50 mm
Ajustabilidad
Fijo
Eléctrico
Potencia: 264 W
Información sobre funciones emergentes
Iluminación de emergencia solo
Señal de emergencia: N/A
Protección
IP: 20

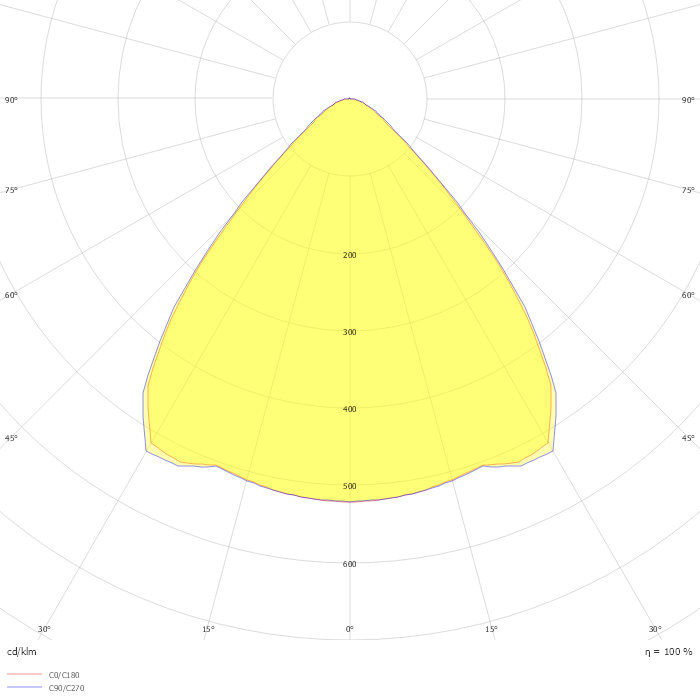

Dato fotométrico
ZIP file
