Hoja de dato de productos
ENTERO RD-M TRIMLESS IP 93030
28453 9320
Delta Light

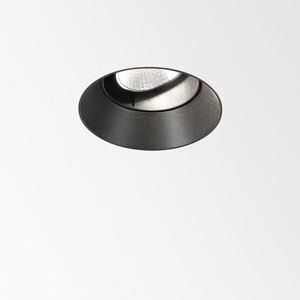

Luminaire, ceiling recessed (indoor use) from Deltalight, named ENTERO RD-M TRIMLESS IP 93030, available in the colour(s): black, full white, gold coloured. For recessed mounting, a round opening (for installing a custom mounting kit) is needed and a min. depth for recessing of 150 mm. This luminaire is equipped with LED array 11,6-17,2W / CRI>90 (R9: 52) / 3000K / 1524-2101lm with an optional driver, suitable for currents of 350mA to 500mA. Light distributor: reflector 30°.
| Equipo disponible | Potencia nominal de lámpara | Flujo de lámpara | Eficiencia luminosa | CCT | CRI |
|---|---|---|---|---|---|
| 1 x LED | 12 W | 1524 lm | 127 lm/W | 3000 K | 90 |
| 1 x LED | 17 W | 2101 lm | 124 lm/W | 3000 K | 90 |
| 1 x LED | 15 W | 1913 lm | 128 lm/W | 3000 K | 90 |
| 1 x LED | 12 W | 1524 lm | 127 lm/W | 3000 K | 90 |
| 1 x LED | 15 W | 1913 lm | 128 lm/W | 3000 K | 90 |
| 1 x LED | 17 W | 2101 lm | 124 lm/W | 3000 K | 90 |
| 1 x LED | 15 W | 1913 lm | 128 lm/W | 3000 K | 90 |
| 1 x LED | 12 W | 1524 lm | 127 lm/W | 3000 K | 90 |
| 1 x LED | 17 W | 2101 lm | 124 lm/W | 3000 K | 90 |
Tipo de Montaje
Empotrado en techo
Forma y medidas
Altura ajustable: 1 mm
Diámetro: 95 mm
Peso: 0,415 kg
Eléctrico
Potencia: 12-17 W
Clases de aislamiento: II
Protección
IP: 44
Certificados: CE

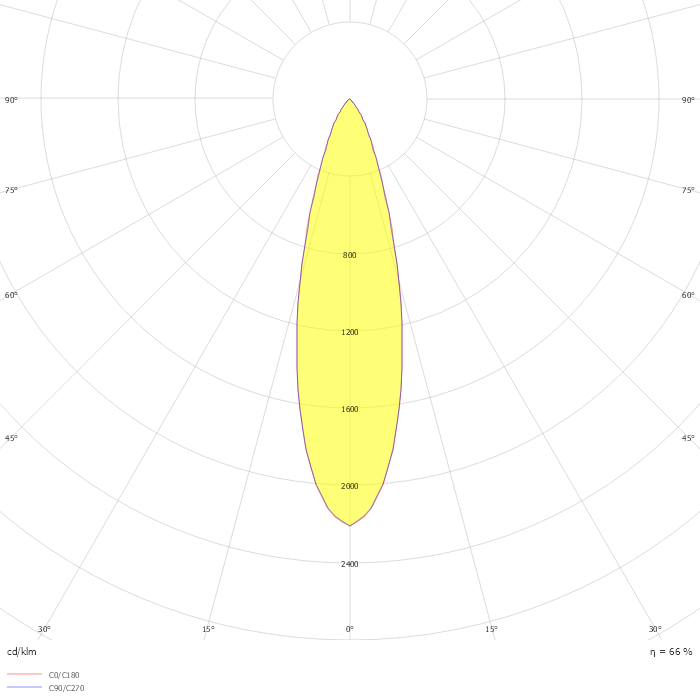

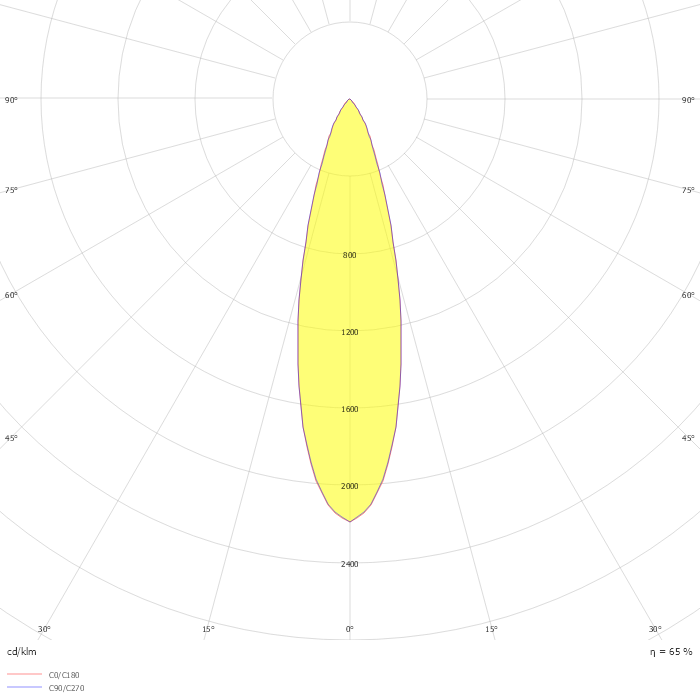

Dato fotométrico
ZIP file
