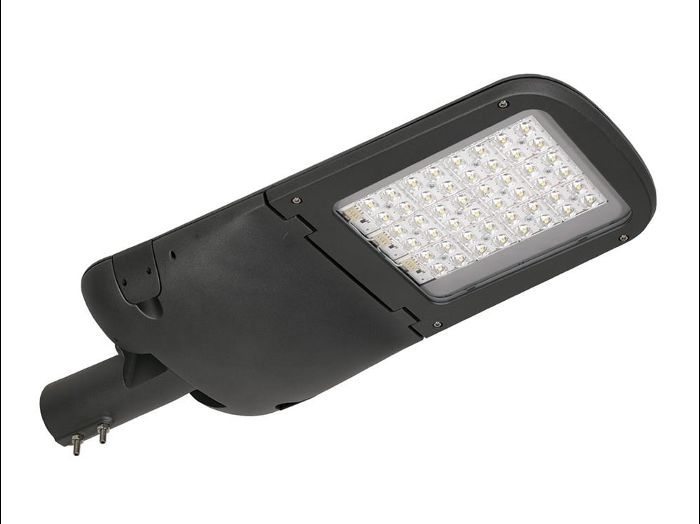

light fitting resistant to dust, humidity and spraying water, suitable for roads, residential areas, parking areas and open spaces; light fitting suitable for lighting outdoor sports halls, certified for ball impact safety pursuant to DIN 18032-3; wide range of optional versions of the light fitting's optical system for diverse applications; ON/OFF electronic driver (AC, DC on demand); Body: aluminium alloy, black grey (RAL 7021); Diffuser: heat-strengthened safety glass; Connection: screw terminal block with disconnector for conductors with maximum cross-section of 4 mm2; Power: 33,9 W; Luminaire flux: 4890 lm; Lifetime: L80/B20; 100000 hours; Impact strength: IK10; Ambient temperature: -40|45 °C; Weight: 5 kg;
Tipo de lámpara | Potencia nominal de lámpara | Flujo total | Eficiencia luminosa | CCT | CRI |
---|---|---|---|---|---|
LED | 33,9 W | 5690 lm | 168 lm/W | 2700 K | 80 |
Tipo de Montaje
Montaje en el cima de mástil
Forma y medidas
Longitud: 630 mm
Anchura: 265 mm
Altura ajustable: 95 mm
Ajustabilidad
Fijo
Diseño
Impresión de Material: Aluminio
Color de carcasa: Antracita / Grafito
Diseñador(a): TREVOS
Eléctrico
Potencia: 33,9 W
Balastos: ECG
Clases de aislamiento: I
Protección
IP: 66
IK: 10
Certificados: CE, ENEC
Otros números operativos
Intervalo de temperatura ambiente: -40...45 °C

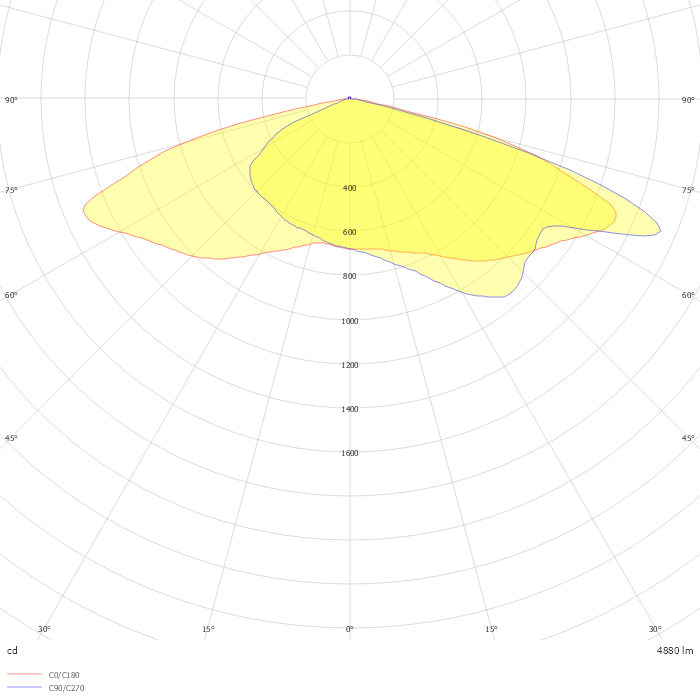

Dato fotométrico
ZIP file
