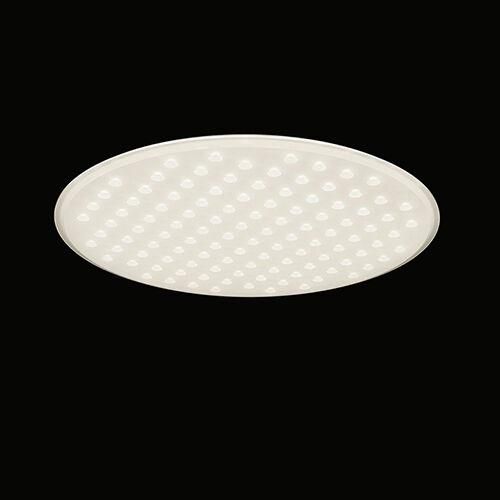

LED ceiling luminaire for direct mounting, closed luminaire housing with cover on top made of plastic, high gloss white (RAL 9016), diffuser panel made of acrylic glass with conical indentations for directing light and reducing glare, Ø 400 mm, 6 mm material thickness, with all round chamfer, both sides matt, suitable for workplace lighting in accordance with DIN EN 12464-1, light distribution approx. 98 % direct beam, wide beam, version for 24 V DC, external converter required.
Equipo disponible | Potencia nominal de lámpara | Flujo de lámpara | Eficiencia luminosa | CCT | CRI |
---|---|---|---|---|---|
1 x LED | 13,1 W | 1783 lm | 136 lm/W | 3000 K | 80 |
Tipo de Montaje
Montaje en techo
Forma y medidas
Longitud: 400 mm
Anchura: 400 mm
Altura ajustable: 17 mm
Ajustabilidad
Fijo
Diseño
Color de carcasa: Blanco
Eléctrico
Potencia: 13,1 W
Protección
IP: 20

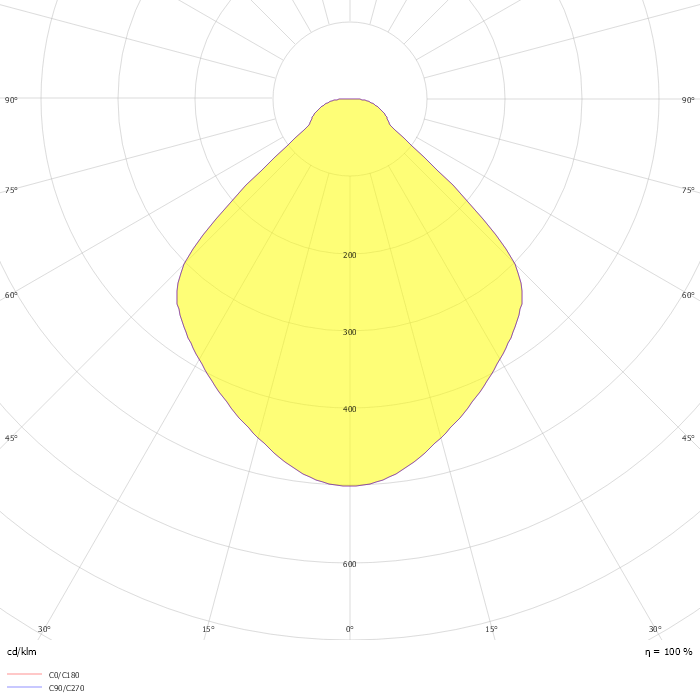

Dato fotométrico
ZIP file
