Hoja de dato de productos

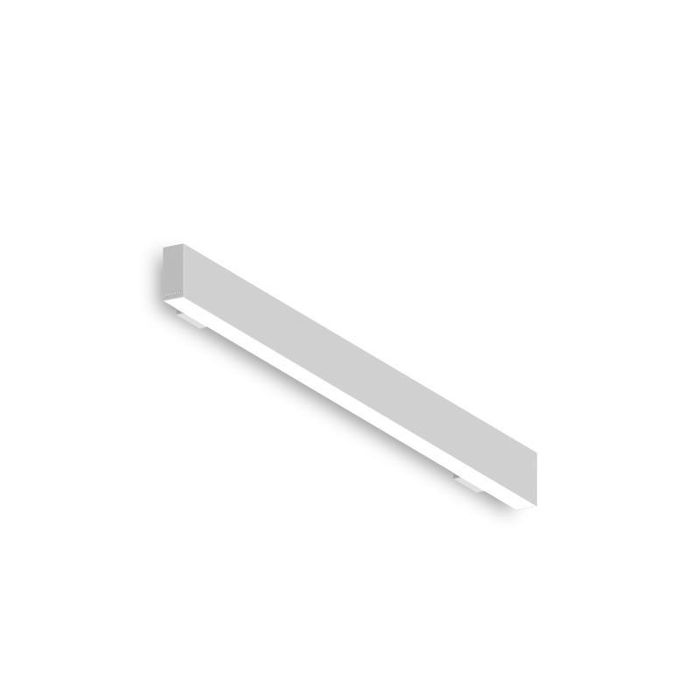

Nybro 8 Surface wall luminaires

NYB-30253-O-W40

LIGMAN

- Lamp LED - CRI Ra > 80 - MacAdam Ellipse 3 SDCM - Colour Temperature 2700K , 3000K ,4000K ,5000K - Diffuser for light output control O – Opal diffuser UGR <19 P – Micro-prismatic UGR <13 Surface, recessed or pendant mounted wall and ceiling linear luminaires with symmetrical up and down lighters for general or specialized lighting application Lighting control system. - Wireless control employing the Bluetooth® 4.0 protocol controlled via Ligman’s mobile App or physical control via xPress switch - Daylight and occupancy sensor options Low copper content die casted aluminium end caps with aluminium profiles completed with 316 grade stainless steel fasteners. Option for opal or micro-prismatic PMMA diffusers for glare control. Built-in driver. Passive thermal management. Surface wall and ceiling mountings with the use of steel support and screws. Pendant mounting with the application of adjustable steel suspension (1m) complete with electrical wires in white. Applications: private residences, offices schools and universities, retail, showrooms, galleries, museums, conference halls, meeting rooms, banks, bars, restaurants, hotel and similar installations

Tipo de lámpara Potencia nominal de lámpara Flujo total Eficiencia luminosa CCT CRI
LED 74 W 8427 lm 114 lm/W 4032 K 80
Nybro 8 Surface wall luminaires

Nybro 8 Surface wall luminaires

Emisión de luz 1 (integrada)

LED

Tipo de Montaje

Montaje en pared

Forma y medidas

Longitud: 2330 mm

Anchura: 60 mm

Altura ajustable: 80 mm

Peso: 7,1 kg

Ajustabilidad

Fijo

Diseño

Color de carcasa: Negro, Blanco, Gris plateado

Eléctrico

Potencia: 74 W

Voltaje: 230 V AC

Balastos: ECG

Control: Regulable 1..10V, DALI

Clases de aislamiento: I

Sensores integrados

Sensores integrados: Sensor de luz solar, Sensor de movimiento, Sensor de presencia

Protección

IP: 20

Temperatura de superficie: 40 °C

Certificados: CE, ENEC, UL

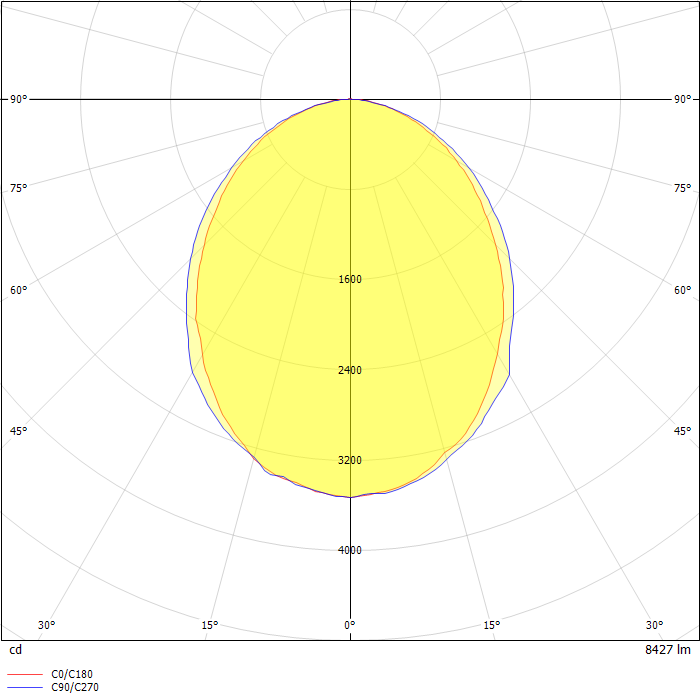

Dato fotométrico

ZIP file
