Hoja de dato de productos

KOMBIC 70 SUT 1500 IP40 NW WFL D B/B

K71ST1540WF840DBB

Lamp

LAMP Suspended or ceiling mounting downlight KOMBIC 70 SUT 1500. Body made of recycled aluminium extrusion at a rate of 75% and reflector made of recycled polycarbonate R-PC FR WHITE TM non-brominated flame retardant additive. Flammability grade V0 according to UL94. Inner reflector finished in black and Wide Flood optic for greater efficiency and to achieve controlled light distribution and low glare level, less than UGR<16. Heatsink made of die-cast aluminium. COB LED, colour temperature 4000K and IRC80. Electronic DALI gear included. IP40 rated. Insulation Class II. Photobiological safety group 0. LED life time: 72.000 L80 B10. Available finishes: White and black.

Equipo disponible Potencia nominal de lámpara Flujo de lámpara Eficiencia luminosa CCT CRI
1 x LED 10,3 W 911 lm 88 lm/W 4000 K 80
KOMBIC 70 SUT 1500 IP40 NW WFL D B/B

KOMBIC 70 SUT 1500 IP40 NW WFL D B/B

Emisión de luz 1

1 x LED

Tipo de Montaje

Montaje en techo, Pendular

Forma y medidas

Altura ajustable: 140 mm

Diámetro: 70 mm

Ajustabilidad

Fijo

Eléctrico

Potencia: 10,3 W

Clases de aislamiento: II

Protección

IP: 04

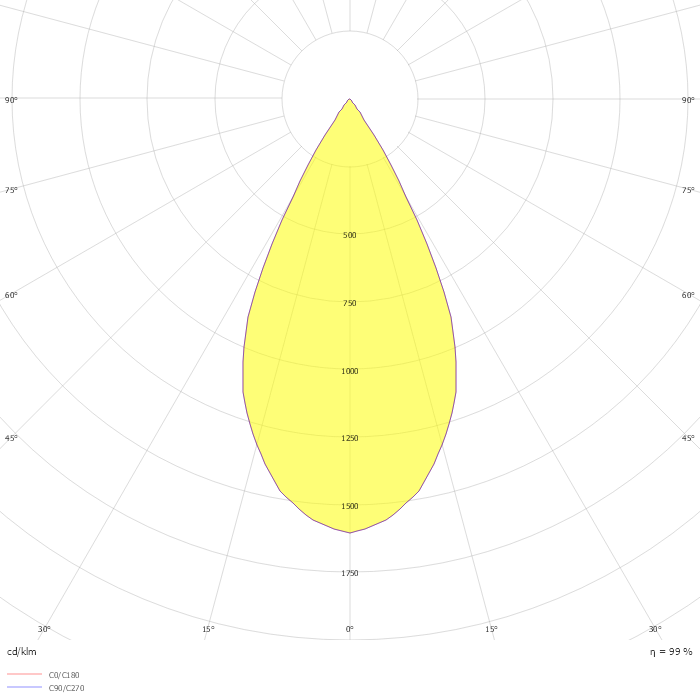

Dato fotométrico

ZIP file
