Hoja de dato de productos

P RTI M600 35W U19C90 DL3K UV

40160UVDLo

Beghelli

TECHNICAL FEATURES: indoor lighting fixture with LED technology, with direct/indirect lighting. For recessed in false ceilings module 600 with visible structure or 30x120. Provided with LED Driver DALI with high energy saving. Hybrid appliance with uvOxy air sanitization®. Activation adjustable on 3 steps: 8, 12, 24 h / day and on 3 sanitization speeds. Parameter adjustment and ON-OFF from APP B.connect and NuBe. Sanitization capacity 200 m3/h. DEGREE OF PROTECTION: IP40. DEGREE OF IMPACT PROTECTION: IK05 (0.7J). OPERATING TEMPERATURE: -20÷40°C. STRUCTURE: In pre-zinced sheet painted with polyester powders White RAL 9003 OPTICS: RTI: Total internal reflection. High transmittance PMMA multi-lenticular lens with glare control. Product suitable for installation in environments with video windows (UNI-EN12464-1). LED SOURCE: integrated LED modules: 4000K, 3000K or 6000K Ra>90; 3SDCM. LED modules are dissipated from the structure. DRIVE: Built in. Led Driver DALI. Protection against network surges. Reliability of the power system: MTBF >80000h. INSTALLATION: Suitable for installation on normally flammable surfaces, in module 600 false ceilings with visible structure, resting on the side by side. Ceiling and suspension with special accessories.

Tipo de lámpara Potencia nominal de lámpara Flujo total Eficiencia luminosa CCT CRI
LED 36 W 5000 lm 139 lm/W 3000 K 90
P RTI M600 35W U19C90 DL3K UV

P RTI M600 35W U19C90 DL3K UV

Emisión de luz 1 (integrada)

LED

Tipo de Montaje

Montaje en techo

Forma y medidas

Longitud: 595 mm

Anchura: 595 mm

Altura ajustable: 10 mm

Ajustabilidad

Fijo

Diseño

Color de carcasa: Blanco

Diseñador(a): Parmeggiani.G

Anti-glare

Anti-glare: Prevención de deslumbramiento: UGR < 19

Eléctrico

Potencia: 36 W

Balastos: ECG

Control: DALI

Clases de aislamiento: I

Protección

IP: 20

IK: 05

Certificados: CE, ENEC

Otros números operativos

Intervalo de temperatura ambiente: -20...40 °C

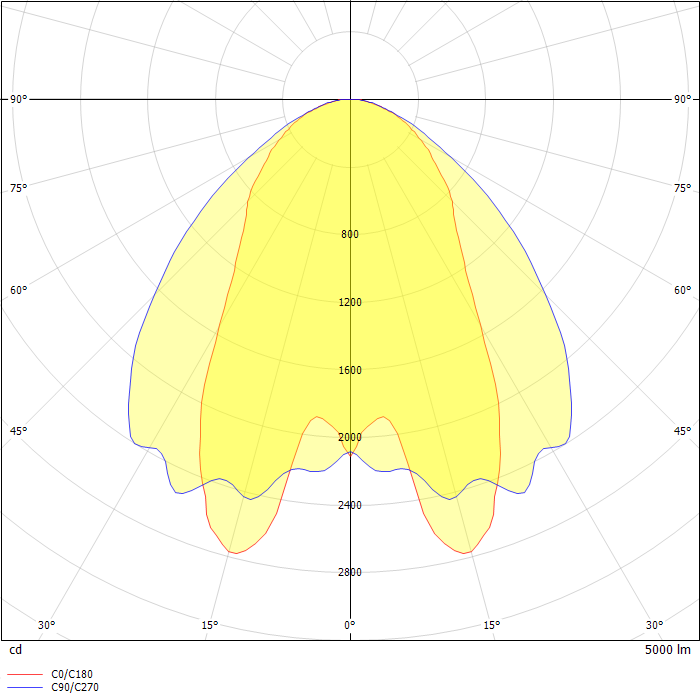

Dato fotométrico

ZIP file
