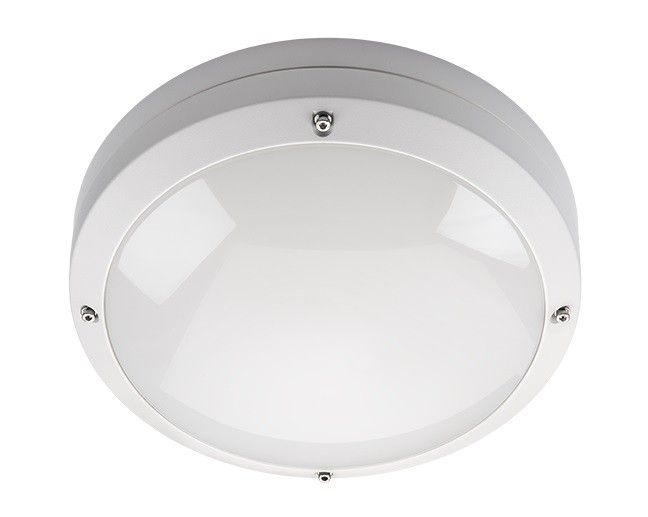

Design: Svein Knudsen / Andrew Smith Attractive, round luminaire that can be mounted to both walls and ceilings, and both indoors and outdoors. Made of die-cast powder-coated aluminium. Flat diffuser made of UV-stabilised opal polycarbonate. Many variants with both sensors and wireless control, as well as various lumen packages. Corrosion-proof with 10-year warranty, IP65 and vandal-resistant rating IK10. Light distribution Direct Light technic LED 14W 3000K Ra>80 SDCM 3 L70/B50 >100,000 hrs Control/Dimming Trailing edge dimming Protection Class I IP65 IK10 Fire protection class: 850°C - 30s Materials and finish Housing: Aluminium Colour: White (RAL 9003) Optics: UV-stabilized polycarbonate Mounting/Connection Surface, Indoor / Outdoor Screwless terminal block
Equipo disponible | Potencia nominal de lámpara | Flujo de lámpara | Eficiencia luminosa | CCT | CRI |
---|---|---|---|---|---|
1 x LED | 14 W | 1400 lm | 100 lm/W | 3000 K | 80 |
Tipo de Montaje
Montaje en techo
Forma y medidas
Longitud: 329 mm
Anchura: 329 mm
Altura ajustable: 107 mm
Ajustabilidad
Fijo
Diseño
Color de carcasa: Blanco
Eléctrico
Potencia: 14 W
Clases de aislamiento: I
Protección
IP: 65
IK: 10

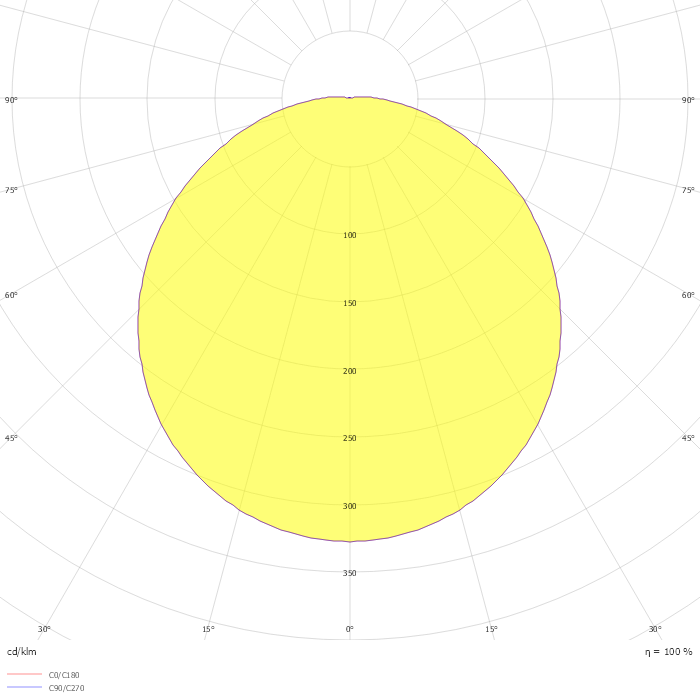

Dato fotométrico
ZIP file
