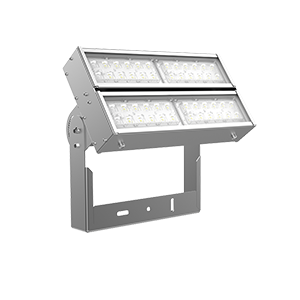

Medium-power Industrial luminaire with wide range of wattage and optics. Housing: heatsink made of extruded aluminum, assembly and mounting elements made of steel. Secondary optics - PMMA/PC. Tempered glass. Installation: Surface-mounted using an adjustable bracket. Angle of rotation: 0° to 180°, step of 7,5°. The luminaire has a wire for connecting to the mains. Wire length 0.3 meters. Application: Outdoor areas. Industrial facilities. Warehouses and fire hazardous zones classified as P-IIa according to Electrical Installations Regulations. Power factor: 0,95 Input voltage (AC, 50Hz), V: 100...305 AC frequency, Hz: 50 Input voltage (DC), V: 130...300 Flicker, %: 5 Climatic modification and category of placement: УХЛ1 Protection class: I Ingress protection (IP): IP65 Impact resistance: IK08 https://www.varton.ru/products/promyshlennoe-osveshchenie/olymp-gl-2-0/olymp-gl-2-0-100-vt/svetodiodnyy-svetilnik-varton-promyshlennyy-olymp-gl-2-0-100-vt-5000-k-klass-zashchity-ip65-ugol-30-/
Equipo disponible | Potencia nominal de lámpara | Flujo de lámpara | Eficiencia luminosa | CCT | CRI |
---|---|---|---|---|---|
1 x LED | 100 W | 14500 lm | 145 lm/W | 5000 K | 70 |
Tipo de Montaje
Montaje en techo
Forma y medidas
Longitud: 360 mm
Anchura: 183 mm
Altura ajustable: 170 mm
Ajustabilidad
Fijo
Eléctrico
Potencia: 100 W
Protección
IP: 65
IK: 08

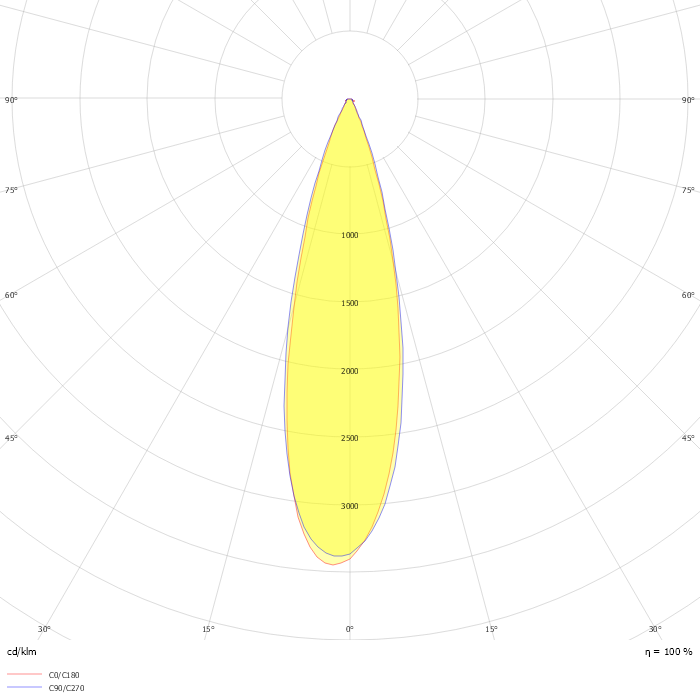

Dato fotométrico
ZIP file
