Hoja de dato de productos

GONIA

611942.004.1

RZB

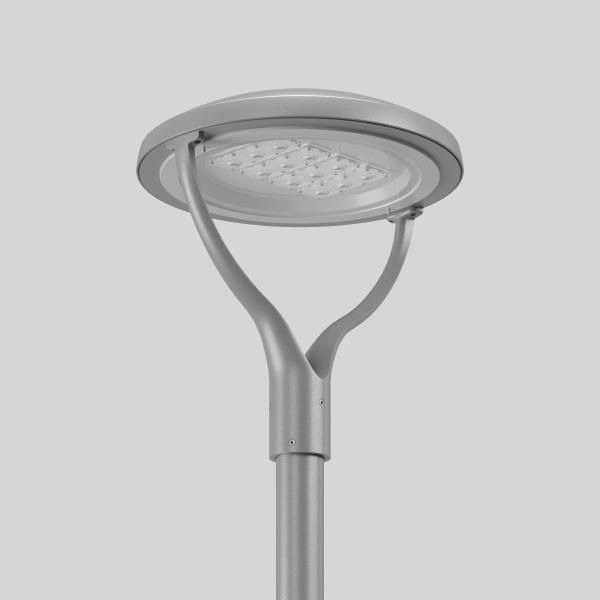

Series: GONIA Pole-top luminaire with classic design and modern LED technology. Luminaire body aluminium, arm cast aluminium with integrated wiring and stainless steel threaded inserts (seawater resistant powder-coated). With membrane valve as a standard to avoid condensed water. Refractor optics with multichip LED. Aluminium light insert with toughened glazing, powder coated. Asymmetrical light distribution for area lighting (P or C lighting classes). Pole attachment for 76 mm spigot. With stainless steel screws. Twist-lock and plug connector for quick replacement. 4 x 1.0 mm² connecting cable included, length 5.5 m. CityTouch-ready, luminaire can be fitted with CityTouch components if required. Please order reducer adapter for pole clamp D 60 mm separately. Colour: silver, matt (approx. RAL 9006) Diameter: 500 mm Height: 525 mm Lamp: LED System power: 24 W Rated luminous flux: 2150 lm Luminous efficiency: 90 lm/W Control gear: Converter, dimmable, DALI Protection class: II Type of protection: IP 65

Tipo de lámpara Potencia nominal de lámpara Flujo total Eficiencia luminosa CCT CRI
LED 24 W 2150 lm 90 lm/W 4000 K 70
GONIA

GONIA

Emisión de luz 1 (integrada)

LED

Tipo de Montaje

Montaje en el cima de mástil

Forma y medidas

Altura ajustable: 525 mm

Diámetro: 500 mm

Ajustabilidad

Fijo

Diseño

Color de carcasa: Gris plateado

Eléctrico

Potencia: 24 W

Protección

IP: 65

IK: 07

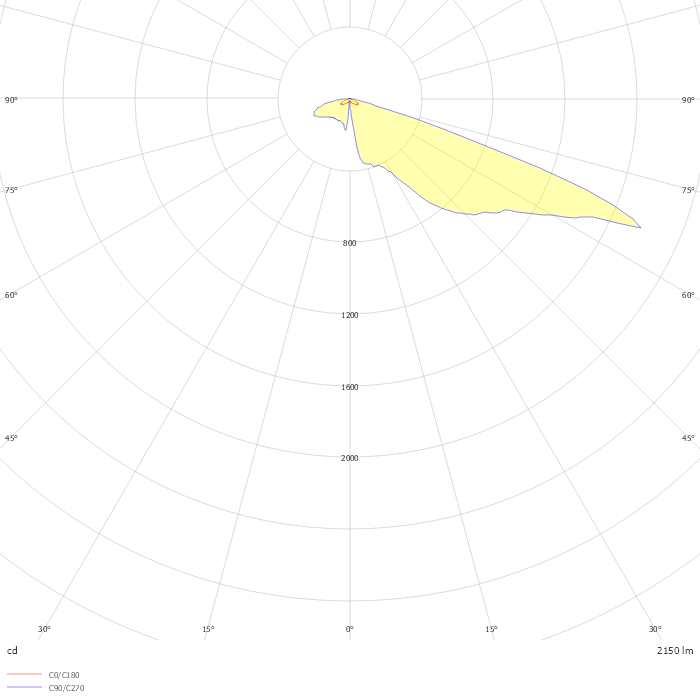

Dato fotométrico

ZIP file
