WALL MOUNTED LUMINAIRE OSLO 650-2 - WITH LOUVERS 1800K

10.12430.0VXXX + 10.42400.0V001

hess

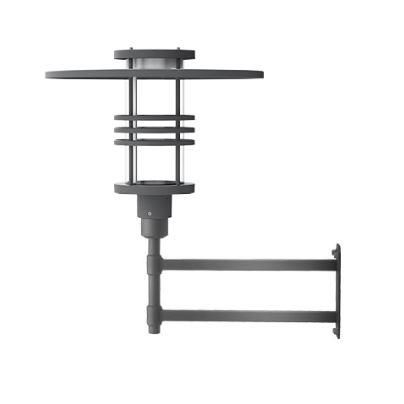

Product image 1: WALL MOUNTED LUMINAIRE OSLO 650-2 - WITH LOUVERS 1800K
Product image 1: WALL MOUNTED LUMINAIRE OSLO 650-2 - WITH LOUVERS 1800K

Product image 1: WALL MOUNTED LUMINAIRE OSLO 650-2 - WITH LOUVERS 1800K



IP
65

Round luminaire canopy, horizontally split in two, made of aluminium, plain coloured. Support elements made of aluminium, painted. Cylindrical luminaire enclosure made of PMMA. Round luminaire body made of aluminium, optionally with or without louvres. 10.42400.0V001 PARALLEL ROHRE Wall bracket OSLO 650/650-2 Made of galvanised steel Overhanging 500 mm Colour: DB 703 or all RAL- (classic- single shades), Hess-DB and Hess-Glimmer-colours. RAL pearl-mica-metallic-shades on request.

Available equipment Nominal lamp power Lamp flux Luminous efficacy CCT CRI
1 x LED 20 W 1333 lm 67 lm/W 1800 K 40
1 x LED 28 W 1864 lm 67 lm/W 1800 K 40
1 x LED 28 W 1764 lm 63 lm/W 1800 K 40
1 x LED 28 W 2037 lm 73 lm/W 1800 K 80
1 x LED 28 W 1772 lm 63 lm/W 1800 K 40
1 x LED 20 W 1401 lm 70 lm/W 1800 K 40
1 x LED 20 W 1461 lm 73 lm/W 1800 K 80
1 x LED 15 W 980 lm 65 lm/W 1800 K 40
1 x LED 15 W 928 lm 62 lm/W 1800 K 40
1 x LED 15 W 1099 lm 73 lm/W 1800 K 80
1 x LED 15 W 934 lm 62 lm/W 1800 K 40
1 x LED 20 W 1326 lm 66 lm/W 1800 K 40
WALL MOUNTED LUMINAIRE OSLO 650-2 - WITH LOUVERS 1800K

WALL MOUNTED LUMINAIRE OSLO 650-2 - WITH LOUVERS 1800K

Light output 1

1 x LED

WALL MOUNTED LUMINAIRE OSLO 650-2 - WITH LOUVERS 1800K

WALL MOUNTED LUMINAIRE OSLO 650-2 - WITH LOUVERS 1800K

Light output 1

1 x LED

WALL MOUNTED LUMINAIRE OSLO 650-2 - WITH LOUVERS 1800K

WALL MOUNTED LUMINAIRE OSLO 650-2 - WITH LOUVERS 1800K

Light output 1

1 x LED

WALL MOUNTED LUMINAIRE OSLO 650-2 - WITH LOUVERS 1800K

WALL MOUNTED LUMINAIRE OSLO 650-2 - WITH LOUVERS 1800K

Light output 1

1 x LED

WALL MOUNTED LUMINAIRE OSLO 650-2 - WITH LOUVERS 1800K

WALL MOUNTED LUMINAIRE OSLO 650-2 - WITH LOUVERS 1800K

Light output 1

1 x LED

WALL MOUNTED LUMINAIRE OSLO 650-2 - WITH LOUVERS 1800K

WALL MOUNTED LUMINAIRE OSLO 650-2 - WITH LOUVERS 1800K

Light output 1

1 x LED

WALL MOUNTED LUMINAIRE OSLO 650-2 - WITH LOUVERS 1800K

WALL MOUNTED LUMINAIRE OSLO 650-2 - WITH LOUVERS 1800K

Light output 1

1 x LED

WALL MOUNTED LUMINAIRE OSLO 650-2 - WITH LOUVERS 1800K

WALL MOUNTED LUMINAIRE OSLO 650-2 - WITH LOUVERS 1800K

Light output 1

1 x LED

WALL MOUNTED LUMINAIRE OSLO 650-2 - WITH LOUVERS 1800K

WALL MOUNTED LUMINAIRE OSLO 650-2 - WITH LOUVERS 1800K

Light output 1

1 x LED

WALL MOUNTED LUMINAIRE OSLO 650-2 - WITH LOUVERS 1800K

WALL MOUNTED LUMINAIRE OSLO 650-2 - WITH LOUVERS 1800K

Light output 1

1 x LED

WALL MOUNTED LUMINAIRE OSLO 650-2 - WITH LOUVERS 1800K

WALL MOUNTED LUMINAIRE OSLO 650-2 - WITH LOUVERS 1800K

Light output 1

1 x LED

WALL MOUNTED LUMINAIRE OSLO 650-2 - WITH LOUVERS 1800K

WALL MOUNTED LUMINAIRE OSLO 650-2 - WITH LOUVERS 1800K

Light output 1

1 x LED

Mounting mode

Wall mounted

Shape and measurements

Length: 825 mm

Width: 650 mm

Height: 832 mm

Adjustability

Fixed

Electric

System power: 15-28 W

Protection

IP: 65

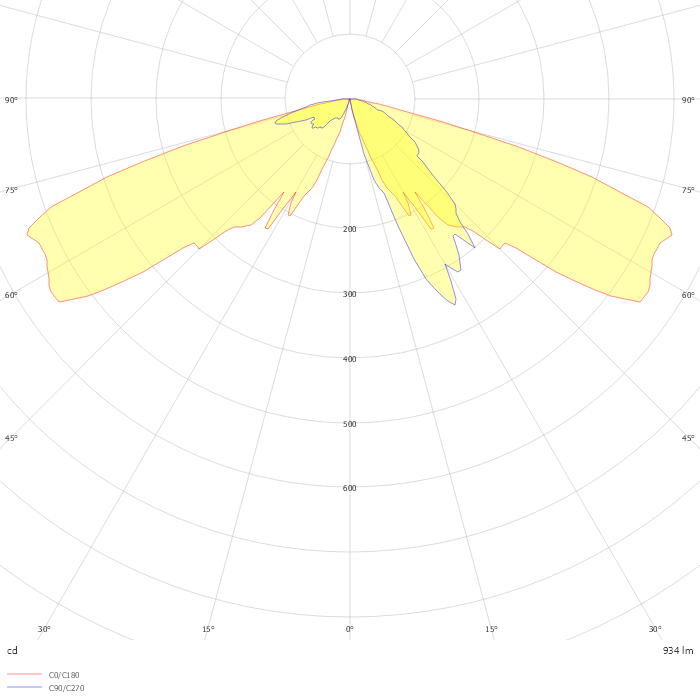

Photometric data

ZIP file

Download file
