Product data sheet

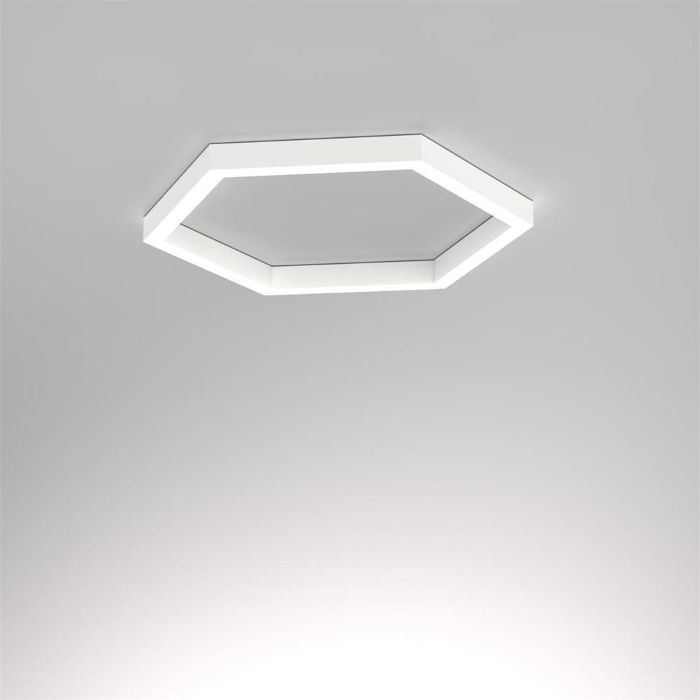

pure3 HEXAGON surface white sat.
P33A15H-9016C1930L3S
Planlicht
LED LO 3000K 58W 5730lm DALI CRI90 https://katalog.planlicht.com/en-us/fam-pure3/
- Light output 1 (integrated)
- Light output 2 (integrated)
- Light output 3 (integrated)
- Light output 4 (integrated)
- Light output 5 (integrated)
- Light output 6 (integrated)
| Lamp type | Nominal lamp power | Total flux | Luminous efficacy | CCT | CRI |
|---|---|---|---|---|---|
| LED | 9.65 W | 955 lm | 99 lm/W | 3000 K | 90 |
| Lamp type | Nominal lamp power | Total flux | Luminous efficacy | CCT | CRI |
|---|---|---|---|---|---|
| LED | 9.65 W | 955 lm | 99 lm/W | 3000 K | 90 |
| Lamp type | Nominal lamp power | Total flux | Luminous efficacy | CCT | CRI |
|---|---|---|---|---|---|
| LED | 9.65 W | 955 lm | 99 lm/W | 3000 K | 90 |
| Lamp type | Nominal lamp power | Total flux | Luminous efficacy | CCT | CRI |
|---|---|---|---|---|---|
| LED | 9.65 W | 955 lm | 99 lm/W | 3000 K | 90 |
| Lamp type | Nominal lamp power | Total flux | Luminous efficacy | CCT | CRI |
|---|---|---|---|---|---|
| LED | 9.65 W | 955 lm | 99 lm/W | 3000 K | 90 |
Mounting mode
Ceiling mounted
Shape and measurements
Length: 1510 mm
Width: 1308 mm
Height: 100 mm
Adjustability
Fixed
Electric
System power: 57.9 W
Protection
IP: 20

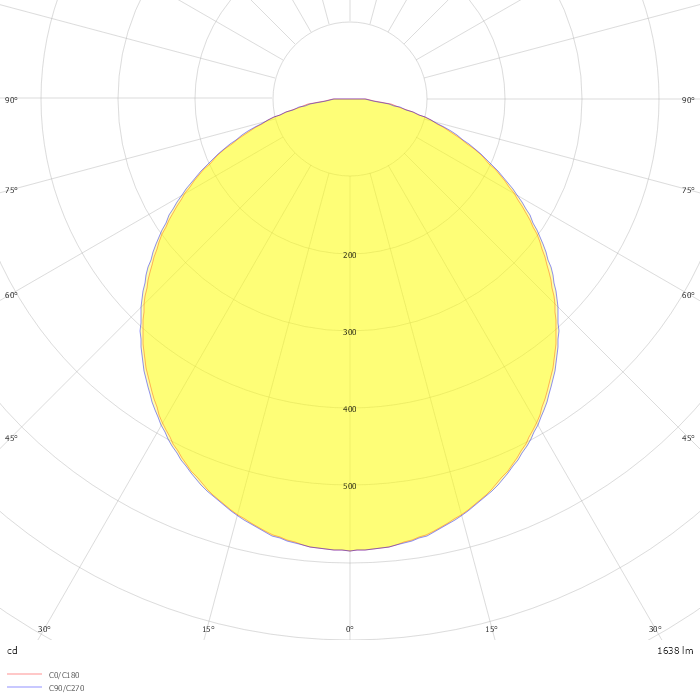

Photometric data
ZIP file
