Product data sheet
MIRAGE 3 110
MEDIUM BLACK
Whitecroft

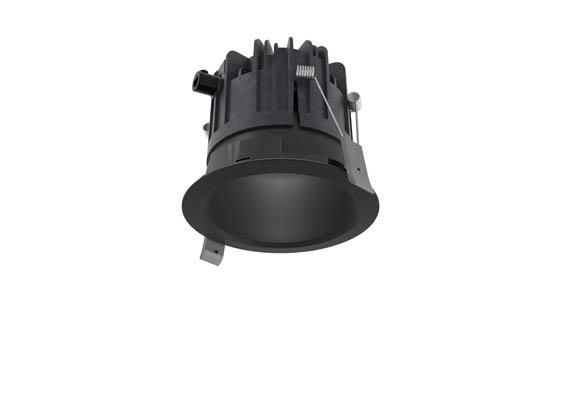

See lamps to select output and colur variants MIRAGE 3 recessed downlighter black reflector, Medium distribution. Narrow 11mm width bezel and shallow depth body. Graphite heat sink for optimum thermal management and superior optics designed for maximum visual comfort. Simple spring ceiling retention method to suit ceiling thicknesses between 1-50mm. Supplied with connected remote driver. Medium round version, 110mm diameter cut out, 118mm over bezel. Emergency Output:- 8.4w - 45% 16.6w - 23% 26.5w - 11%
| Available equipment | Nominal lamp power | Lamp flux | Luminous efficacy | CCT | CRI |
|---|---|---|---|---|---|
| 1 x LED | 26.5 W | 1882 lm | 71 lm/W | 4000 K | 90 |
| 1 x LED | 16.6 W | 1234 lm | 74 lm/W | 4000 K | 90 |
| 1 x LED | 8.4 W | 625 lm | 74 lm/W | 4000 K | 90 |
| 1 x LED | 26.5 W | 1746 lm | 65 lm/W | 3000 K | 90 |
| 1 x LED | 16.6 W | 1145 lm | 69 lm/W | 3000 K | 90 |
| 1 x LED | 8.4 W | 580 lm | 69 lm/W | 3000 K | 90 |
| 1 x LED | 26.5 W | 2267 lm | 85 lm/W | 4000 K | 80 |
| 1 x LED | 16.6 W | 1487 lm | 89 lm/W | 4000 K | 80 |
| 1 x LED | 8.4 W | 753 lm | 89 lm/W | 4000 K | 80 |
| 1 x LED | 26.5 W | 2108 lm | 79 lm/W | 3000 K | 80 |
| 1 x LED | 16.6 W | 1383 lm | 83 lm/W | 3000 K | 80 |
| 1 x LED | 8.4 W | 700 lm | 83 lm/W | 3000 K | 80 |
Mounting mode
Ceiling recessed
Shape and measurements
Height: 100 mm
Diameter: 120 mm
Adjustability
Fixed
Electric
System power: 8.4-26.5 W
Protection
IP: 44

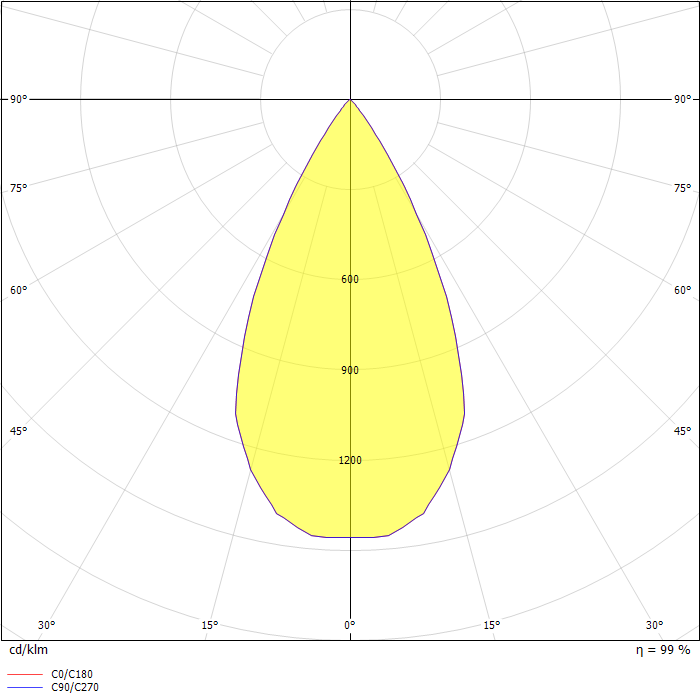

Photometric data
ZIP file
