Product data sheet

PRL 230Z 40SC00 60 27K0 V3 MP

3254285

EAE

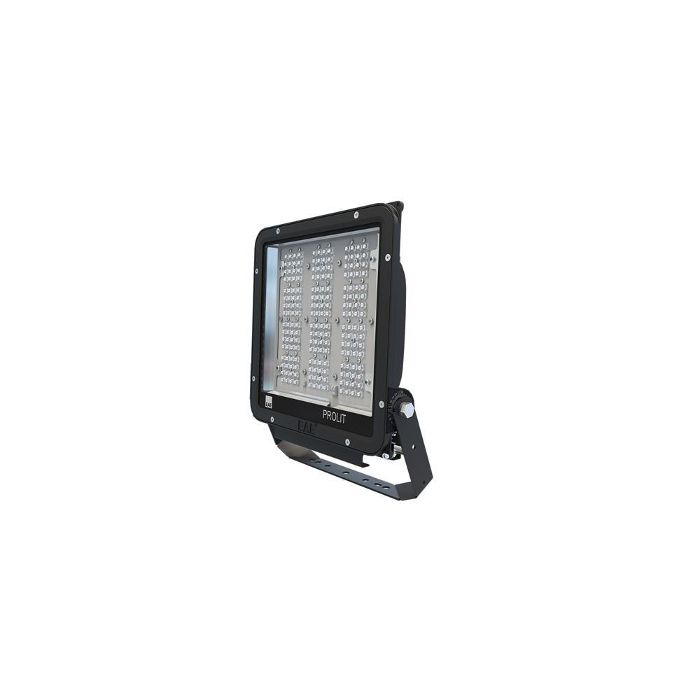

Product image 1: PRL 230Z 40SC00 60 27K0 V3 MP
Product image 1: PRL 230Z 40SC00 60 27K0 V3 MP

Product image 1: PRL 230Z 40SC00 60 27K0 V3 MP



IP
66

Thanks to its gently designed new housing and high efficient electronic design

Available equipment Nominal lamp power Lamp flux Luminous efficacy CCT CRI
1 x LED 221.2 W 26963 lm 122 lm/W 4055 K 80
PRL 230Z 40SC00 60 27K0 V3 MP

PRL 230Z 40SC00 60 27K0 V3 MP

Light output 1

1 x LED

Mounting mode

Pole top mounted

Shape and measurements

Length: 13.23 in

Width: 13.19 in

Height: 3.74 in

Adjustability

Free

Electric

System power: 221.2 W

Protection

IP: 66

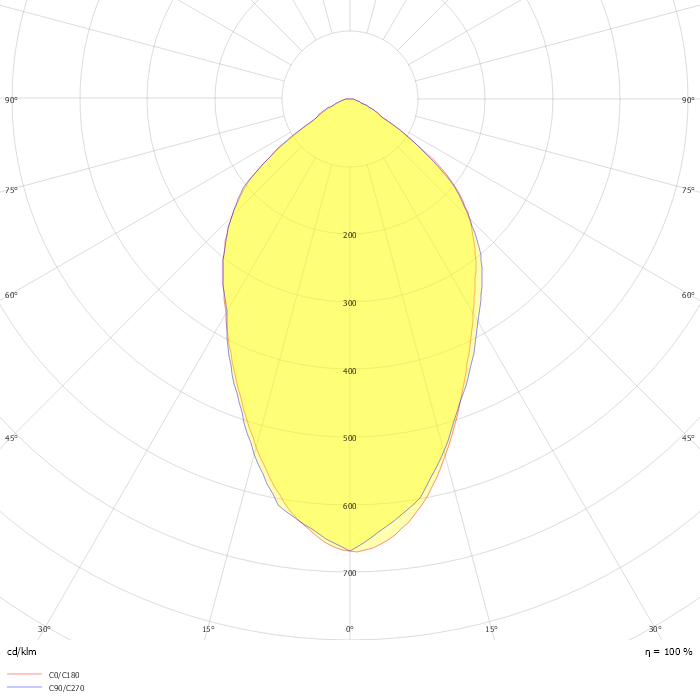

Photometric data

ZIP file

Download file
