Product data sheet

AREAMASTER GEN2 LED 9500 LUMENS 4000 K CCT NEMA  7X 7 Frosted glass

AMLGL6NF6

Appleton (Emerson EGS)

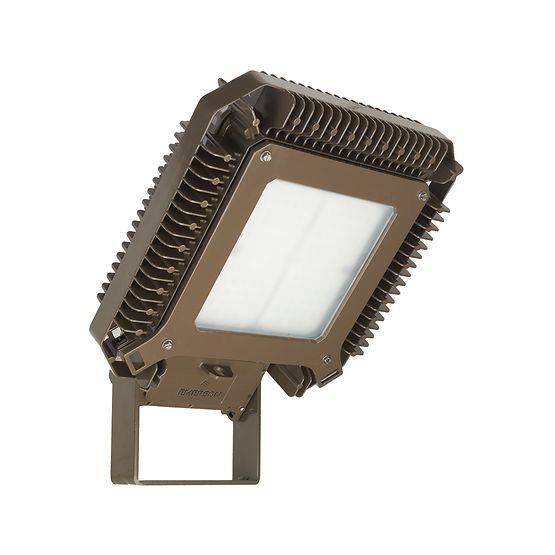

Product image 1: AREAMASTER GEN2 LED 9500 LUMENS 4000 K CCT NEMA  7X 7 Frosted glass
Product image 1: AREAMASTER GEN2 LED 9500 LUMENS 4000 K CCT NEMA  7X 7 Frosted glass

Product image 1: AREAMASTER GEN2 LED 9500 LUMENS 4000 K CCT NEMA  7X 7 Frosted glass



IP
67

Areamaster LED Gen2 Flood light Series Pole Mount 9500 LUMENS, 4000 K CCT, NEMA 7X7 Yoke Mount BU-120-277 Vac, 50/60Hz, BH-347-480 Vac , 50/60Hz 3/4" NPT Hub NO OPTICS FROSTED GLASS Class I, Division 2, Groups A, B, C, D Class I, Zone 2 GROUP IIC TYPE 3R, 4, 4X IP66/67 Suitable for Use in Wet Locations Marine Outside (Salt Water) Refer to catalog for additional options

Lamp type Nominal lamp power Total flux Luminous efficacy CCT CRI
LED 70.1 W 7504 lm 107 lm/W 3783 K 84
AREAMASTER GEN2 LED 9500 LUMENS 4000 K CCT NEMA  7X 7 Frosted glass

AREAMASTER GEN2 LED 9500 LUMENS 4000 K CCT NEMA  7X 7 Frosted glass

Light output 1 (integrated)

LED

Mounting mode

Pole top mounted

Shape and measurements

Length: 6.00 in

Width: 6.00 in

Height: 5.04 in

Adjustability

Free

Electric

System power: 70.1 W

Appliance Class: II

Protection

IP: 67

Explosion zone suitability: 2

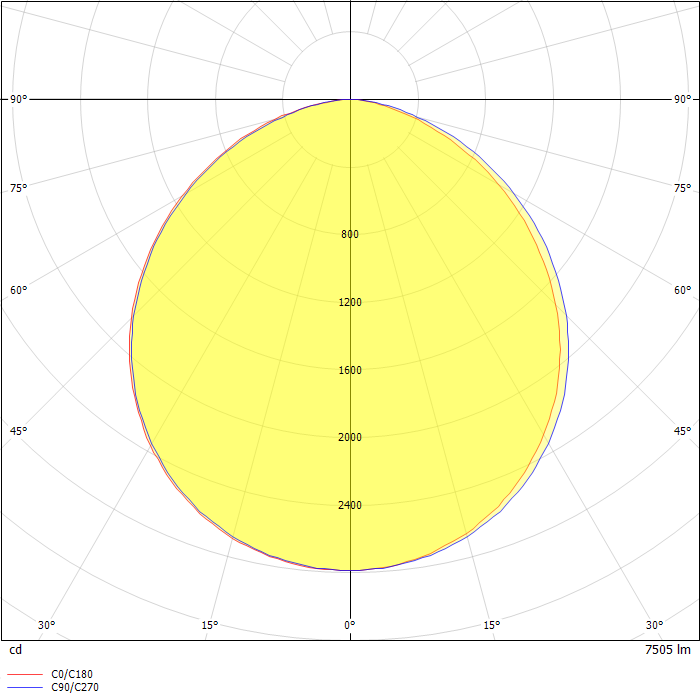

Photometric data

ZIP file

Download file
