Product data sheet
Linear XL Option Uplight - RGBW - Milky - 1174mm
L9XU11M0
Proled (MBN GmbH)
IP
20

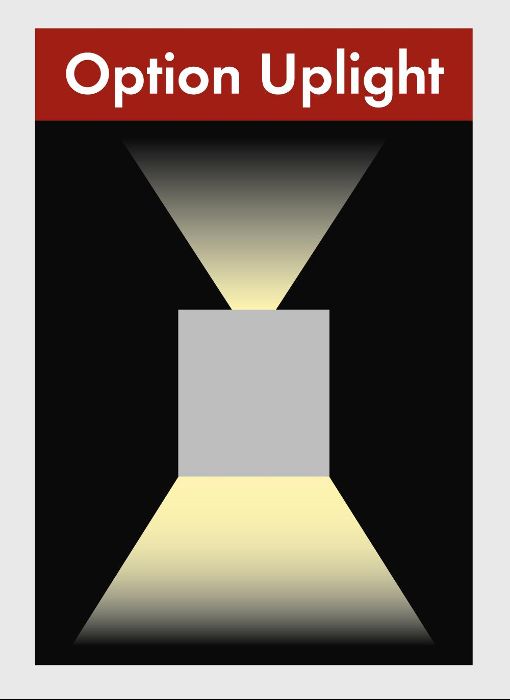

The option Uplight RGBW for the LINEAR XL luminaire series has to be orderd in addition to the luminaire - LINEAR XL POWER CLASS BASIC (2 STRIPS) - LINEAR XL POWER CLASS MEDIUM (3 STRIPS) - LINEAR XL POWER CLASS FORTE (4 STRIPS)
- Light output 1 (integrated)
- Light output 2 (integrated)
- Light output 3 (integrated)
- Light output 4 (integrated)
| Lamp type | Nominal lamp power | Total flux | Luminous efficacy | CCT | CRI |
|---|---|---|---|---|---|
| LED | 5.75 W | 80 lm | 14 lm/W | 0 K | -29 |
| Lamp type | Nominal lamp power | Total flux | Luminous efficacy | CCT | CRI |
|---|---|---|---|---|---|
| LED | 5.75 W | 230 lm | 40 lm/W | 7247 K | -18 |
| Lamp type | Nominal lamp power | Total flux | Luminous efficacy | CCT | CRI |
|---|---|---|---|---|---|
| LED | 5.75 W | 50 lm | 9 lm/W | 0 K | -50 |
Mounting mode
Pendant
Shape and measurements
Length: 46.22 in
Width: 2.99 in
Height: 0.59 in
Weight: 0.4 kg
Adjustability
Fixed
Electric
System power: 23 W
Color adjustable
Appliance Class: I
Protection
IP: 20
Other operating numbers
Ambient temperature range: 14...113°F

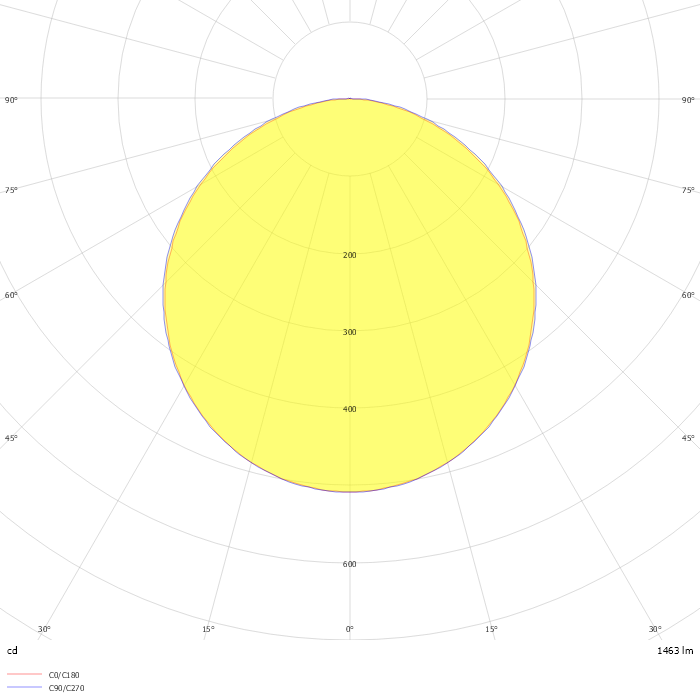

Photometric data
ZIP file
