Product data sheet

LED Square Recessed Mini Panel 12W 2800K

SPL-12V

MPE

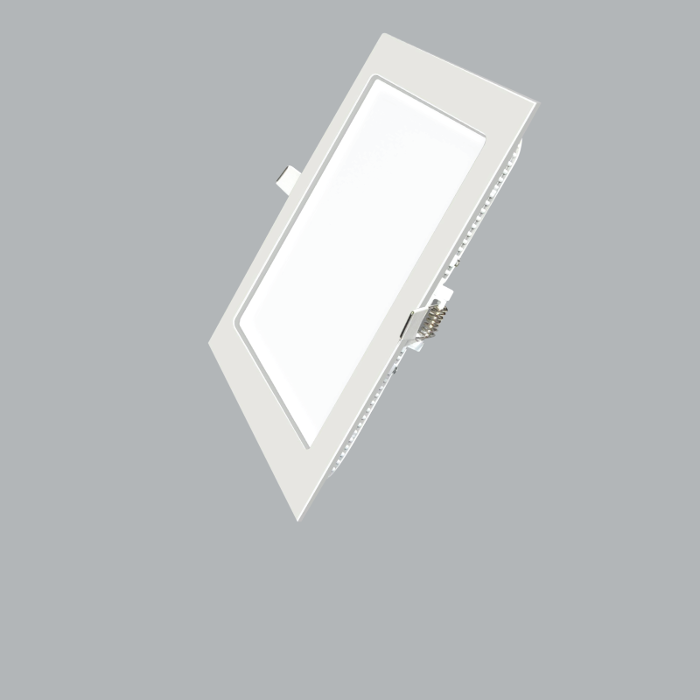

Product image 1: LED Square Recessed Mini Panel 12W 2800K
Product image 1: LED Square Recessed Mini Panel 12W 2800K

Product image 1: LED Square Recessed Mini Panel 12W 2800K



IP
20

- Square shape - Recessed - mounted on ceiling - Size: 170 x170 x 25 mm - Cut out:150 x 150mm - Light frame made of anti-oxidation aluminum alloy - Light guide plate made of PMMA plastic for uniform light distribution - Detachable driver for easy connection, Integrated driver EMC. - Voltage: 100-240VAC - Power: 12W - Power Factor (PF): >0.5 - Luminance: 950 lm - Color Temperature (CCT): 2800-3200K - RA >80 High Color Rendering Index - Beam angle: 110◦ - Chip LED: SMD 2835 - Life Time: 30,000 hours - Instant Light: 0s - European Standard CE - RoHS

Available equipment Nominal lamp power Lamp flux Luminous efficacy CCT CRI
1 x LED 12 W 950 lm 81 lm/W 2800 K 82
LED Square Recessed Mini Panel 12W 2800K

LED Square Recessed Mini Panel 12W 2800K

Light output 1

1 x LED

Mounting mode

Ceiling mounted

Shape and measurements

Length: 6.69 in

Width: 6.69 in

Height: 0.79 in

Adjustability

Fixed

Electric

System power: 12 W

Protection

IP: 20

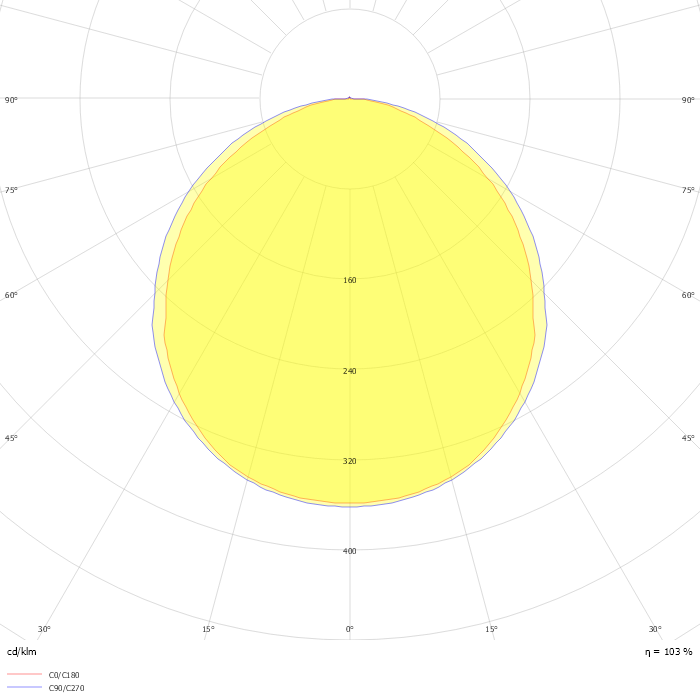

Photometric data

ZIP file

Download file
