Product data sheet

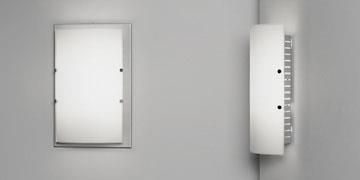

Zoft Wall LED Glass 3000K
55994-402
Fagerhult
Installation Luminaire for wall installation. Two fixing holes. Connection Snap-in terminal block 3x2.5 mm² or 5x2.5 mm² when dimming. LED luminaire connects via 230 V, built-in LED driver. 1-phase through-wiring possible. Surface mounted mains cable possible. Design Luminaire body and rear section of alu-grey sheet steel. Diffuser of opal matt glass. Alu-grey (RAL 9006) structured rear plate. Integrated HF-ballast. Dimming DALI/Phase-pulse control as standard.
| Lamp type | Nominal lamp power | Total flux | Luminous efficacy | CCT | CRI |
|---|---|---|---|---|---|
| LED | 15 W | 1646 lm | 110 lm/W | 3000 K | 80 |
Mounting mode
Wall mounted
Shape and measurements
Length: 6.50 in
Width: 2.97 in
Height: 24.41 in
Adjustability
Fixed
Design
Color of housing: Silver gray
Electric
System power: 15 W
Protection
IP: 20
Photometric data
ZIP file
