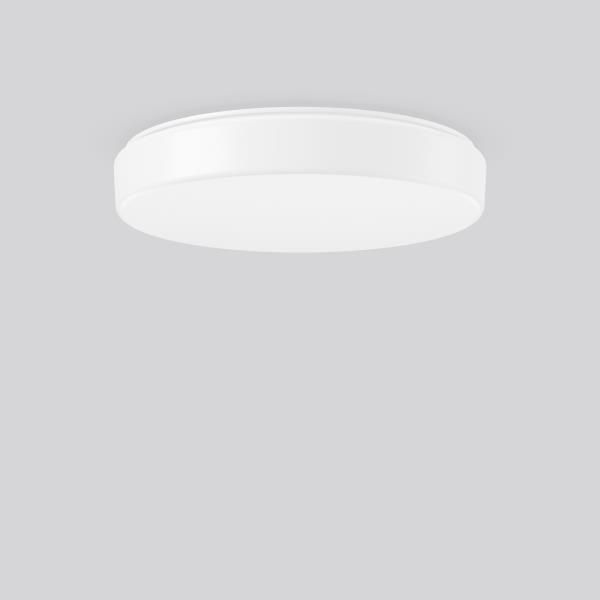

Series: FLAT POLYMERO KREIS Decorative round surface-mounted luminaire. Base: metal, powder-coated. Diffuser made of non-yellowing plastic (PMMA), opal. Diffuser fastening: patented push system. Suitable for Ceiling mounting, Wall (surface). Colour: white Diameter: 515 mm Height: 98 mm Lamp: LED Socket: without socket Colour temperature: 4000K Colour rendering index (CRI): 80 System power: 24 W Rated luminous flux: 2550 lm Beam angle Down: 124° Luminous efficiency: 106 lm/W Control gear: Regulated power supply Protection class: I Type of protection: IP 40
Lamp type | Nominal lamp power | Total flux | Luminous efficacy | CCT | CRI |
---|---|---|---|---|---|
LED | 24 W | 2550 lm | 106 lm/W | 4000 K | 80 |
Mounting mode
Ceiling mounted
Shape and measurements
Height: 3.86 in
Diameter: 20.28 in
Adjustability
Fixed
Electric
System power: 24 W
Protection
IP: 40
IK: 03

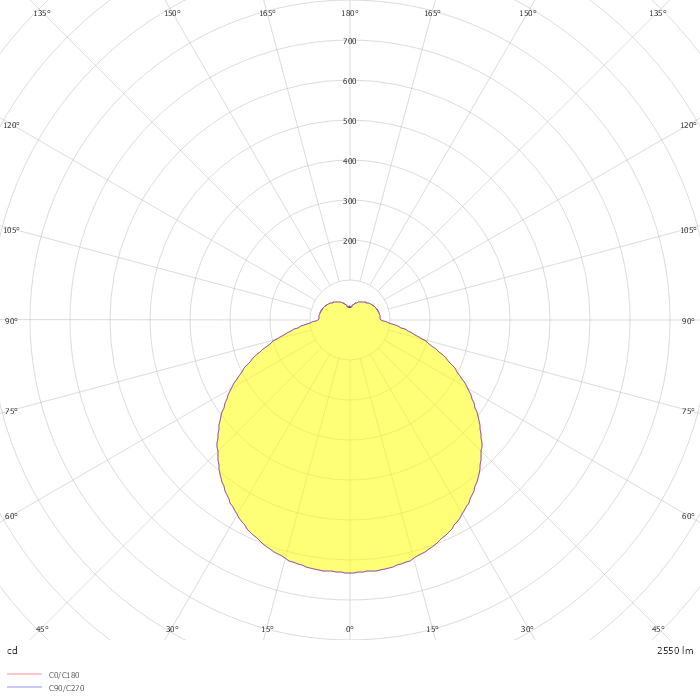

Photometric data
ZIP file
