Product data sheet

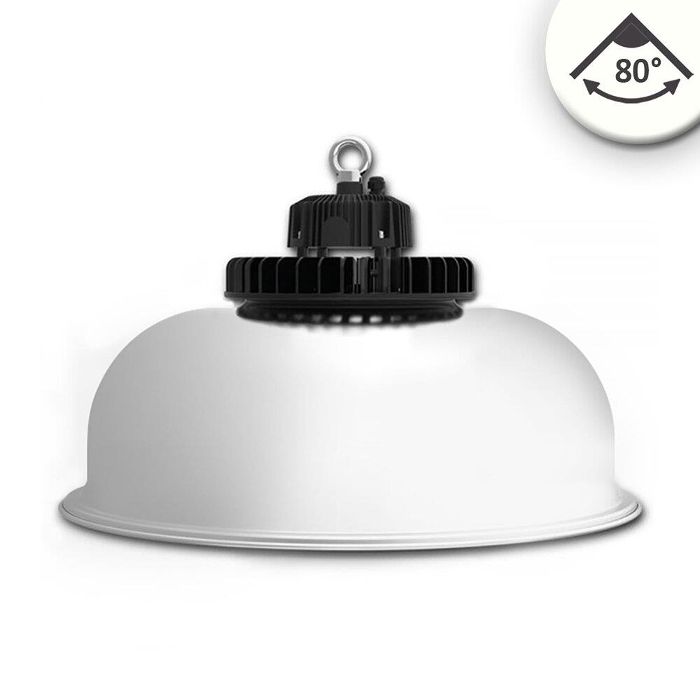

LED Highbay luminaire FL 120W, aluminum reflector, 80°, IP65, 1-10V dimmable, neutral white
113734
ISOLED
IP
65
LED high-bay lightning FL 120W, aluminum reflector, 80°, IP65, 1-10V dimmable, neutral white, for indoor and outdoor use, 5-year warranty | Dimensioned wattage: 123 W | Effective wattage: 120 W | Energy efficiency class: C (EU 2019/2015) | Nominal Voltage: 220 - 240 V AC | Material: Aluminum | Surface color: silver/grey | Protection class: IP65 | Allowable ambient Temperatures: -20° - 40° C | Diameter: 535 mm | Beam angle: 80° fixed | Color temperature: 4000K | Color rendering index: 80 (Ra 1-8) | Luminous flux: 18000 lm | 1-10V dimmable | Incl. external replaceable transformer | suitable for indoor and outdoor use | suitable for operating sites with fire hazard | Usable service life: 70000 h (L80|B50) | Guarantee: 5 years | | Dimming specification: dimmable via 1-10V DC control voltage or rotary potentiometer (100kO) | FABRICATION: ISOLED 113734
Mounting mode
Pendant
Shape and measurements
Height: 12.83 in
Diameter: 21.06 in
Adjustability
Fixed
Design
Material impression: Aluminum
Color of housing: Silver gray
Electric
System power: 120 W
Ballast: ECG
Controller: Dimmable 1..10V
Protection
IP: 65
Designation labels: CE
Other operating numbers
Ambient temperature range: -4...104°F

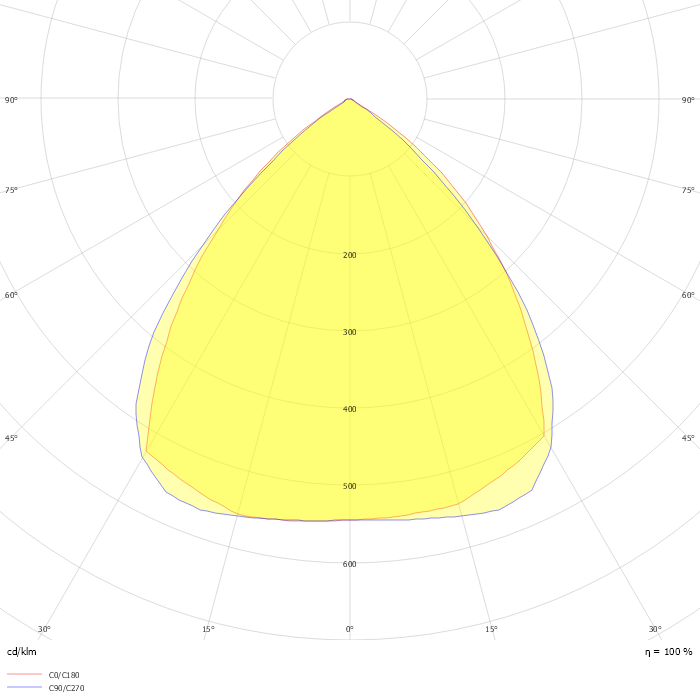

Photometric data
ZIP file
