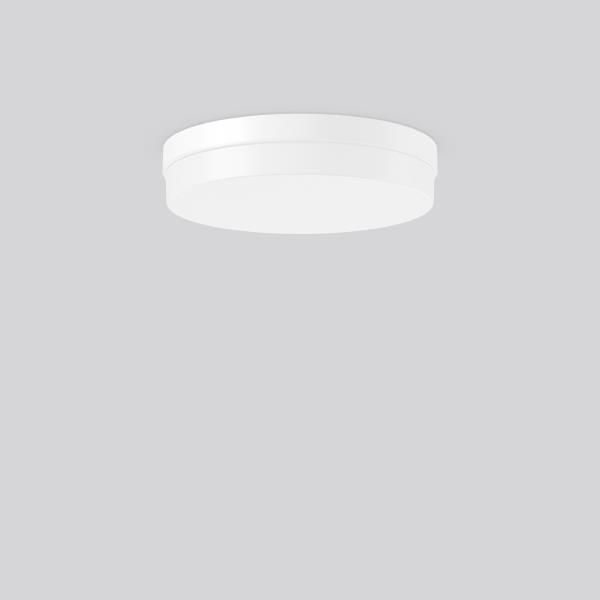

Series: FLAT KREIS Decorative round surface-mounted luminaire. Base: plastic. Diffuser: plastic (polypropylene), opal. Diffuser fastening: spring system. Homogeneous and smooth light distribution. Colour: white Diameter: 380 mm Height: 78 mm Lamp: LED exchangeable Socket: without socket Colour temperature: 3000K Colour rendering index (CRI): 83 System power: 19 W Rated luminous flux: 1200 lm Beam angle Down: 121° Luminous efficiency: 63 lm/W Control gear: AC power, DALI dimmable Protection class: I Type of protection: IP 43
Lamp type | Nominal lamp power | Total flux | Luminous efficacy | CCT | CRI |
---|---|---|---|---|---|
LED | 19 W | 1200 lm | 63 lm/W | 3000 K | 80 |
Mounting mode
Ceiling mounted
Shape and measurements
Height: 3.07 in
Diameter: 14.96 in
Adjustability
Fixed
Electric
System power: 19 W
Protection
IP: 43
IK: 08

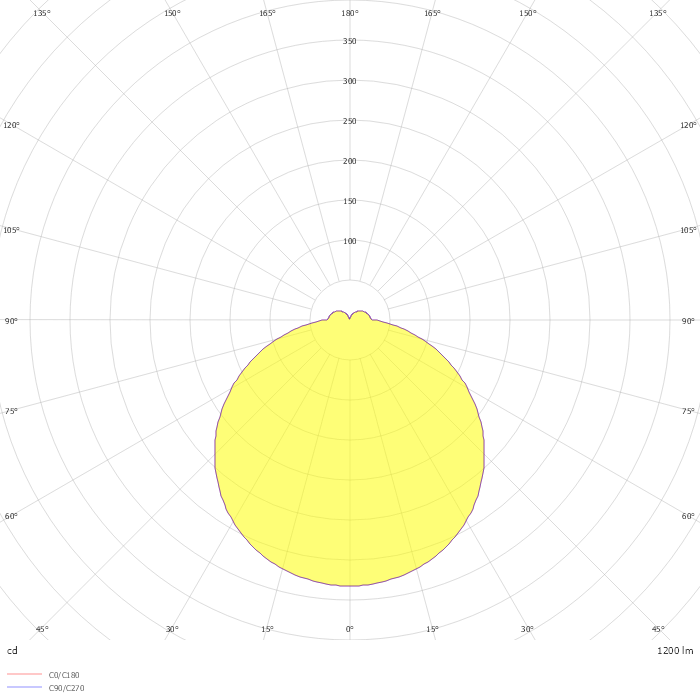

Photometric data
ZIP file
