Product data sheet

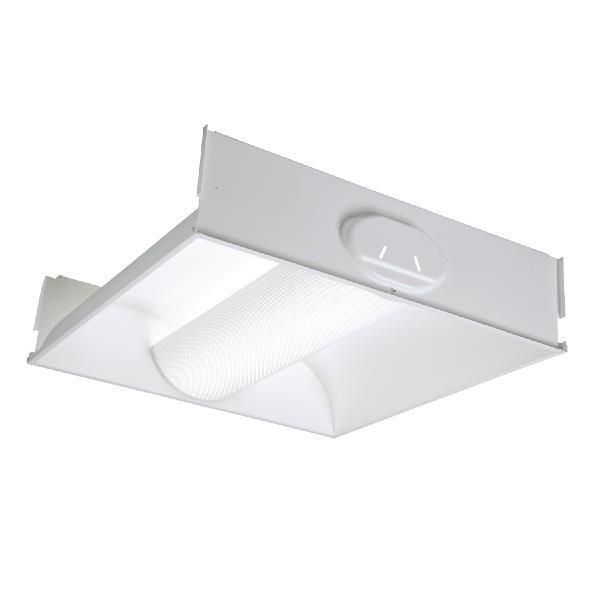

Ovation LED Series

24RDI-50-UNV-L850-CD1-U

Cooper Lighting

Available in 1' x 4', 2' x 2' and 2' x 4' recessed versions, Clean architectural appearance, Optimal performance and energy efficient, High performance efficacy up to 109 lumens per watt, Over 60% energy savings when compared to fluorescent troffers, Four CCT options: 3000K, 3500K, 4000K, and 5000K at 80CRI, Standard 0-10V dimming driver with Step-dim and Fifth Light options, 2x2: L90 at 60,000 hours 2x4: L89 at 60,000 hours with 5 year warranty

Lamp type Nominal lamp power Total flux Luminous efficacy CCT CRI
LED 50.3 W 5320 lm 106 lm/W 5000 K 80
Ovation LED Series

Ovation LED Series

Light output 1 (integrated)

LED

Mounting mode

Ceiling recessed

Shape and measurements

Length: 24.00 in

Width: 48.00 in

Height: 0.39 in

Adjustability

Fixed

Electric

System power: 50.3 W

Protection

IP: 47

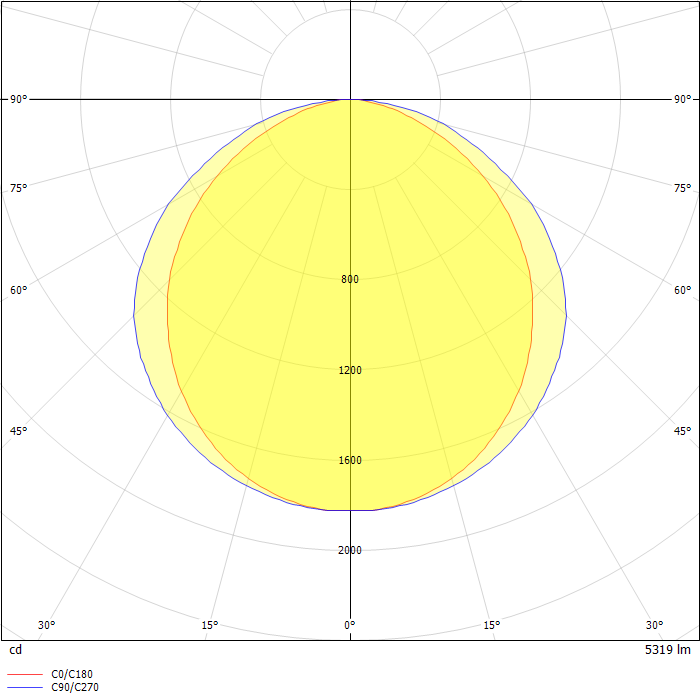

Photometric data

ZIP file
