Product data sheet

STI134 IP55:LED-6W/4K

190-9009

we-ef

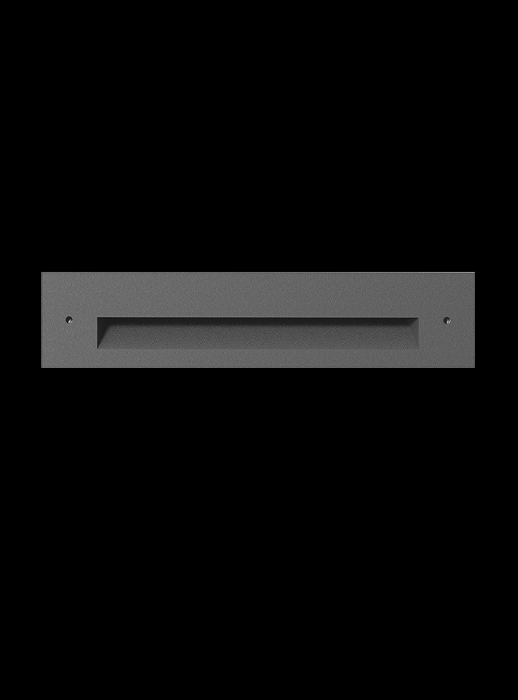

Product image 1: STI134 IP55:LED-6W/4K
Product image 1: STI134 IP55:LED-6W/4K

Product image 1: STI134 IP55:LED-6W/4K



IP
66

IK
07

IP66, Class I. IK07. Marine-grade die-cast aluminium alloy. 5CE superior corrosion protection including PCS hardware. Silicone rubber gasket. Polycarbonate main lens. Two cable entries. Pre-installation blockout is recommended for mounting in concrete, available on request.

Available equipment Nominal lamp power Lamp flux Luminous efficacy CCT CRI
1 x LED 6 W 62 lm 5 lm/W 4000 K 80
STI134 IP55:LED-6W/4K

STI134 IP55:LED-6W/4K

Light output 1

1 x LED

Mounting mode

Wall recessed

Shape and measurements

Length: 2.36 in

Width: 10.63 in

Height: 3.94 in

Weight: 0.9 kg

Electric

System power: 8 W

Appliance Class: I

Protection

IP: 66

IK: 07

Photometric data

ZIP file

Download file
