Produktdatenblatt
ABSCHLUSSELEMENT 200-2 AR 4000K
16.02100.0VXXX
hess

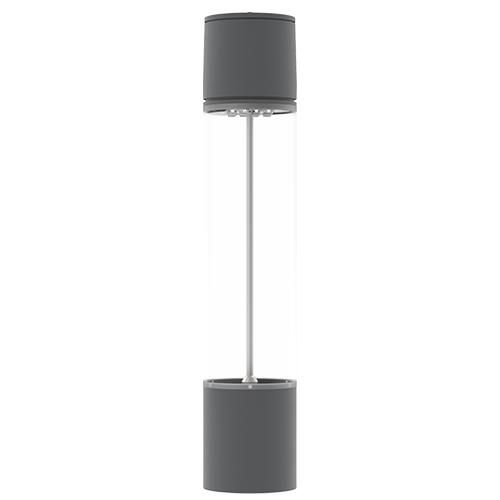

Für Säulenleuchte City Elements 200-2. Aus Aluminiumrohr ø 200 mm. Elementhöhe 1000 mm. Leuchtenabdeckung aus zylindrischem PMMA-Glas.
| Verfügbare Bestückungen | Lampen-Nennleistung | Lampen-Lichtstrom | Leuchten-Lichtausbeute | CCT | CRI |
|---|---|---|---|---|---|
| 1 x LED | 28 W | 2247 lm | 80 lm/W | 4000 K | 80 |
| 1 x LED | 20 W | 1639 lm | 82 lm/W | 4000 K | 80 |
| 1 x LED | 20 W | 1637 lm | 82 lm/W | 4000 K | 80 |
| 1 x LED | 20 W | 1685 lm | 84 lm/W | 4000 K | 80 |
| 1 x LED | 15 W | 1672 lm | 111 lm/W | 4000 K | 80 |
| 1 x LED | 20 W | 2212 lm | 111 lm/W | 4000 K | 80 |
| 1 x LED | 28 W | 3185 lm | 114 lm/W | 4000 K | 80 |
| 1 x LED | 20 W | 2324 lm | 116 lm/W | 4000 K | 80 |
| 1 x LED | 28 W | 3157 lm | 113 lm/W | 4000 K | 80 |
| 1 x LED | 20 W | 2497 lm | 125 lm/W | 4000 K | 80 |
| 1 x LED | 20 W | 2427 lm | 121 lm/W | 4000 K | 80 |
| 1 x LED | 20 W | 2337 lm | 117 lm/W | 4000 K | 80 |
| 1 x LED | 20 W | 2338 lm | 117 lm/W | 4000 K | 80 |
| 1 x LED | 20 W | 2374 lm | 119 lm/W | 4000 K | 80 |
| 1 x LED | 15 W | 1177 lm | 78 lm/W | 4000 K | 80 |
| 1 x LED | 15 W | 1176 lm | 78 lm/W | 4000 K | 80 |
| 1 x LED | 15 W | 1210 lm | 81 lm/W | 4000 K | 80 |
| 1 x LED | 20 W | 2432 lm | 122 lm/W | 4000 K | 80 |
| 1 x LED | 28 W | 3204 lm | 114 lm/W | 4000 K | 80 |
| 1 x LED | 28 W | 3107 lm | 111 lm/W | 4000 K | 80 |
| 1 x LED | 28 W | 3228 lm | 115 lm/W | 4000 K | 80 |
| 1 x LED | 28 W | 2245 lm | 80 lm/W | 4000 K | 80 |
| 1 x LED | 28 W | 2310 lm | 82 lm/W | 4000 K | 80 |
| 1 x LED | 28 W | 2284 lm | 82 lm/W | 4000 K | 80 |
| 1 x LED | 28 W | 3032 lm | 108 lm/W | 4000 K | 80 |
| 1 x LED | 28 W | 3319 lm | 119 lm/W | 4000 K | 80 |
| 1 x LED | 28 W | 3088 lm | 110 lm/W | 4000 K | 80 |
| 1 x LED | 15 W | 1746 lm | 116 lm/W | 4000 K | 80 |
| 1 x LED | 15 W | 1702 lm | 113 lm/W | 4000 K | 80 |
| 1 x LED | 15 W | 1700 lm | 113 lm/W | 4000 K | 80 |
| 1 x LED | 15 W | 1636 lm | 109 lm/W | 4000 K | 80 |
| 1 x LED | 15 W | 1683 lm | 112 lm/W | 4000 K | 80 |
| 1 x LED | 15 W | 1662 lm | 111 lm/W | 4000 K | 80 |
| 1 x LED | 15 W | 1618 lm | 108 lm/W | 4000 K | 80 |
| 1 x LED | 15 W | 1589 lm | 106 lm/W | 4000 K | 80 |
| 1 x LED | 20 W | 2253 lm | 113 lm/W | 4000 K | 80 |
| 1 x LED | 28 W | 3235 lm | 116 lm/W | 4000 K | 80 |
| 1 x LED | 28 W | 3173 lm | 113 lm/W | 4000 K | 80 |
| 1 x LED | 15 W | 1197 lm | 80 lm/W | 4000 K | 80 |
| 1 x LED | 20 W | 1666 lm | 83 lm/W | 4000 K | 80 |
Montageart
Mastaufsatzmontage
Bauform und Abmessungen
Länge: 202 mm
Breite: 202 mm
Höhe: 1010 mm
Ausrichtbarkeit
Drehbar
Elektrik
Systemleistung: 15-28 W
Schutzeigenschaften
IP: 65

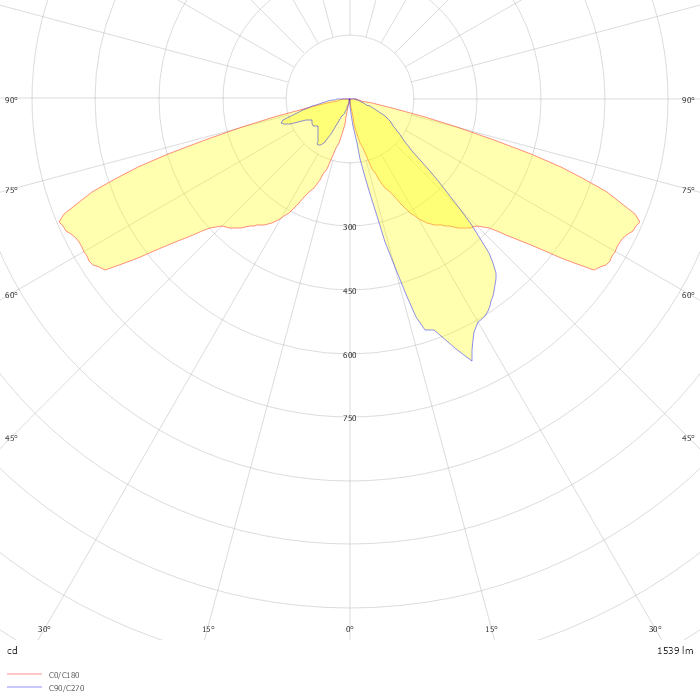

Photometrie-Dateien
ZIP file
