KOMBIC 100 RD 2000 IP43 940 WFL DA WH/WH

K11RD2040WF940DWW

Lamp

Round recessed downlight model KOMBIC 100 RD by Lamp brand. Reflector made of recycled polycarbonate R-PC FR WHITE TM non-brominated flame retardant additive. Flammability grade V0 according to UL94. Interior reflector and frame in white finish. Heatsink made of die-cast aluminium. COB LED, colour temperature 4000K with CR90. Luminaire with electronic wiring DALI-2 included. Insolation Class II. Lifetime: >100.000 L90 B10. With IP43 degree of protection. Group 0 photobiological safety. With Wide Flood optics to achieve a controlled light distribution and  low UGR<19. Environmental Product Declaration - EPD®available, according to UNE-EN ISO 9001:2015 and UNE-EN ISO 14001:2015.

现有设备 额定光源功率 光源光通量 光效 CCT CRI
1 x LED 20.3瓦 1640 lm 81 lm/W 4000K 90
KOMBIC 100 RD 2000 IP43 940 WFL DA WH/WH

KOMBIC 100 RD 2000 IP43 940 WFL DA WH/WH

光输出1

1 x LED

安装方式

天花板嵌入式

形状和尺寸

高: 75毫米

直径: 100毫米

可调性

固定

电子

系统功率: 20.3瓦

器具类: II

防护

IP: 43

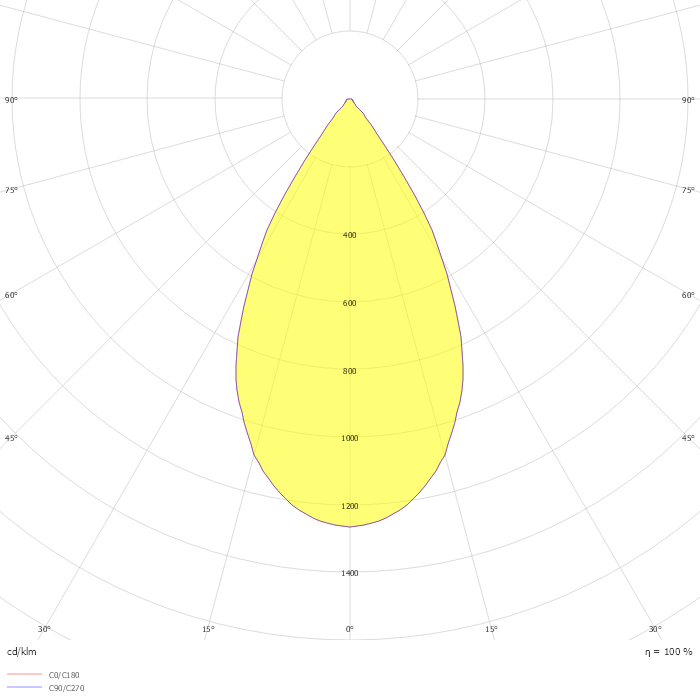

Photometric data

ZIP file
