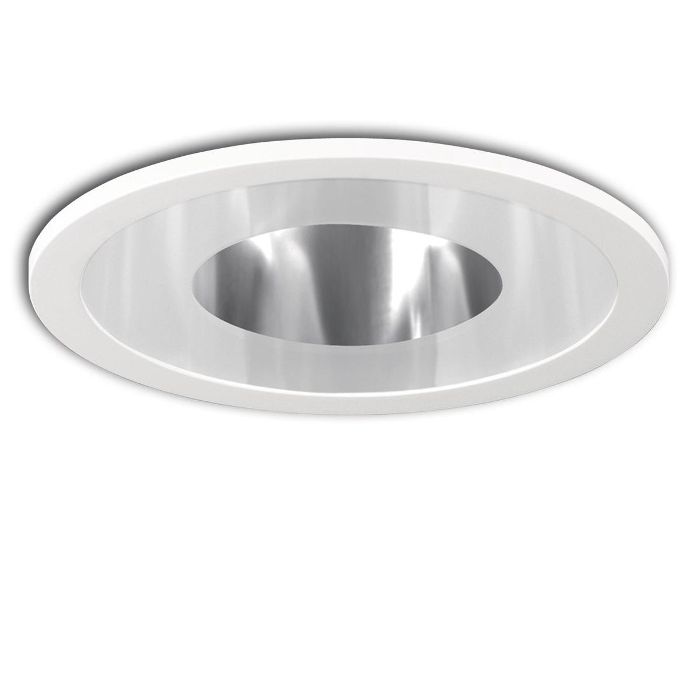

Tentec Fluorescent Lamps TC-TEL(I) Recessed Luminaire, Light distribution direct Downlight with lite optic Halo Optic Product: T26011-03 Lite Optic: 81040R23 Lite Optic Halo Optic Efficient and attractive light by a halo optic in opal70% diffuse Supporting ring white Light Technique Mirror reflector made of corrosion and age resistant pure aluminium (Al99.8), silver polished and post anodised Luminaire housing Robust housing made of die-cast aluminium for preparation of WILA Liteoptics Lamp holder made of fire resistant plastic according to UL94V-O Operating and assembly technology Electronic ballast, static, with highest energy efficiency with label EEI A2 Separate EB Module with 380 mm connecting cable for simple mounting in restricted ceiling voids Fast connector clamp for 3 x 1,5 mm², optional through wiring possible MS-3 mounting technique for a tool free change of Liteoptics Threaded 3-point mounting for ceiling thicknesses 1-25 mm, via hollow wall box principle for a quick installation Relamping requires no tools Lamp Wattage: 2 x 18 W Luminaire Luminous Flux: 1350 Llm System Efficiency: 34 Llm/W Luminance γ ≥ 65°: --- UGR: 22 Number Luminaires LZ: 0.11 Connector: plug-in terminal, 3 x 2.5 mm2 Reflector Size: R23 Diameter D: 255 mm Cut-out CO: 240 mm Installation Depth RD: 125 mm Total Weight: 1.4 kg Degree of Protection IP20 CE-Sign Total system: Protection class 1 Data record T26011-03+81040R23
