LD238 6.4W 500mA WWB BB

LD238-E3-500-WWB-BB

LightGraphix

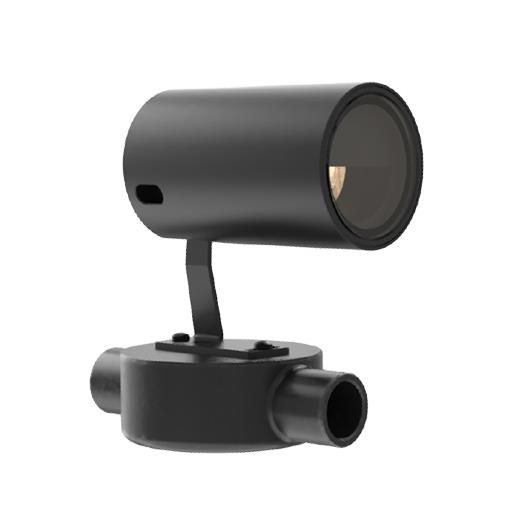

LD238 Ø68mm Surface mount spotlight. IP67. Constant Current. 6.4W 500mA 55° Extra wide with Besa Box Mount. The LD238 is a discreet surface mounted spotlight that is very compact in size but offers a powerful output and large range of features. There are 2 LED engines available. The E3 engine provides the ability to achieve a high output of up to 597lm, whilst the F1 offers a super warm colour temperature of 2200K. Featuring a single optic for superior beam quality, there are a range of beam angles available and a half or full cowl for low glare. With a choice of fixing options, including a ground spike, tree strap and surface mounted base, the versatile LD238 can be used in a range of exterior applications.

光源种类 额定光源功率 总光通量 光效 CCT CRI
LED 6.4瓦 465 lm 73 lm/W 3000K 85
LD238 6.4W 500mA WWB BB

LD238 6.4W 500mA WWB BB

光输出 1 (整合)

LED

安装方式

壁装式, 吸顶式, 落地式

形状和尺寸

高: 27毫米

直径: 27毫米

可调性

可旋转和可倾协, 可倾斜, 调整不受限

设计

材料效果: 铝, 玻璃

外罩颜色: 黑, 白, 硬煤 / 石墨, 银灰

电子

系统功率: 6.4瓦

控制器: 可调 0..10V, 可调 1..10V, DMX, DALI

器具类: III

防护

IP: 67

认证: CE

其他编号

环境温度范围: -20...50°C

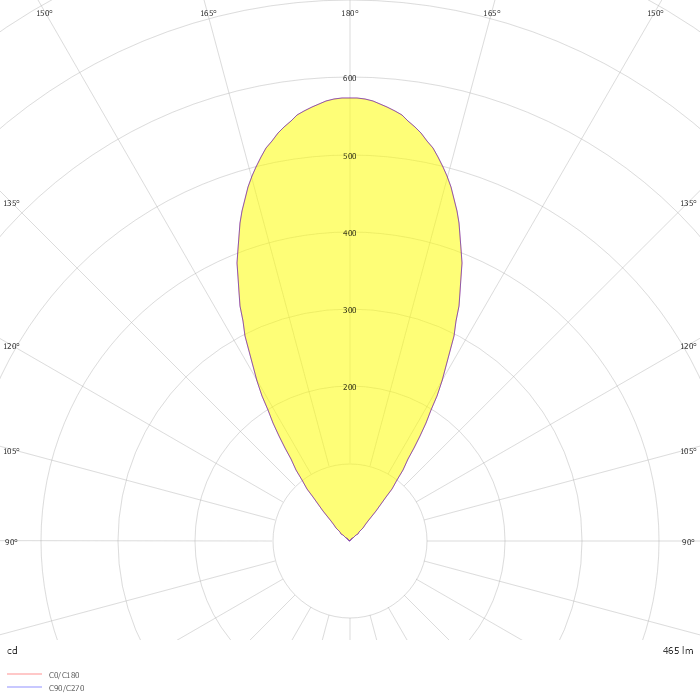

Photometric data

ZIP file
