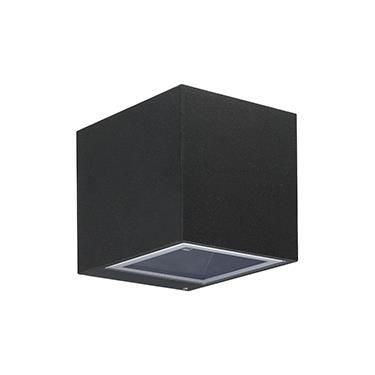

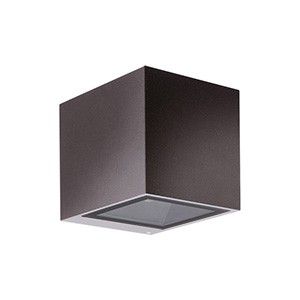

Wall mounted for outdoor applications, double beam; surface mounted (wall); body in die-cast aluminium alloy EN AB 47100, screen in tempered glass; finishes: anthracite, white, cor-ten, grey; 2 power LEDs (7W), 2 power LEDs High Intensity (15W); 7W, 15W - 230Vac; built in power supply unit; connection box with 0,50 m cable H05RN-F 2x0,75 Ø6,3 mm; total delivered lumens: 102 lm (3000K, 7W) per beam, 323 lm (3000K, 15W) per beam; optics: asymmetrical 70°, asymmetrical 140°, asymmetrical 10°x70°, diffuse; LED colour: white - 2700K, 3000K, 4000K; ingress protection: IP65; impact resistance: IK06; operating temperature: -20°C+45°C; screen temperature: max 40°C (Ta 25°C); Glow Wire Test: 960°; photobiological safety: risk group 1 in accordance with EN62471:2006; appliance class: I; weight 1,66 kg; dimensions 100x100x120 mm
| 光源种类 | 额定光源功率 | 总光通量 | 光效 | CCT | CRI |
|---|---|---|---|---|---|
| LED | 7.5瓦 | 323 lm | 43 lm/W | 3000K | 80 |
| 光源种类 | 额定光源功率 | 总光通量 | 光效 | CCT | CRI |
|---|---|---|---|---|---|
| LED | 7.5瓦 | 323 lm | 43 lm/W | 3000K | 80 |
安装方式
壁装式
形状和尺寸
长: 100毫米
宽: 120毫米
高: 100毫米
可调性
固定
电子
系统功率: 15瓦
器具类: I
防护
IP: 65
IK: 06

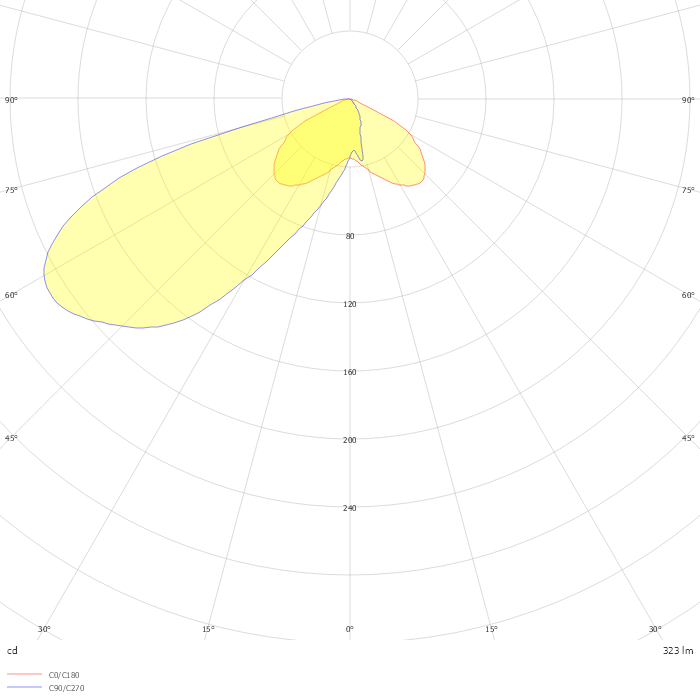

Photometric data
ZIP file
