■Description: the lamp body is made of high strengh cold rolled stell plate, gorgeous and durable,with integrated design, more beautiful and elegant. ■Use high quality LED SMD chip,stable light efficiency and color consistency, high luminous maintenance rate , reliable and durable. ■Built in high slew rate LED drive power, auto-recovery protection for over voltage,Over current,short circuit situations, which makes sure stable usage. ■Applied in indoor stores, shopping malls, hotels, exhibition hall and so on
光源种类 | 额定光源功率 | 总光通量 | 光效 | CCT | CRI |
---|---|---|---|---|---|
LED | 20.5瓦 | 1533 lm | 75 lm/W | 5781K | 86 |
安装方式
吸顶式, 悬吊式
形状和尺寸
高: 75毫米
直径: 180毫米
可调性
固定
电子
系统功率: 20.5瓦
器具类: II
防护
IP: 20
IK: 02

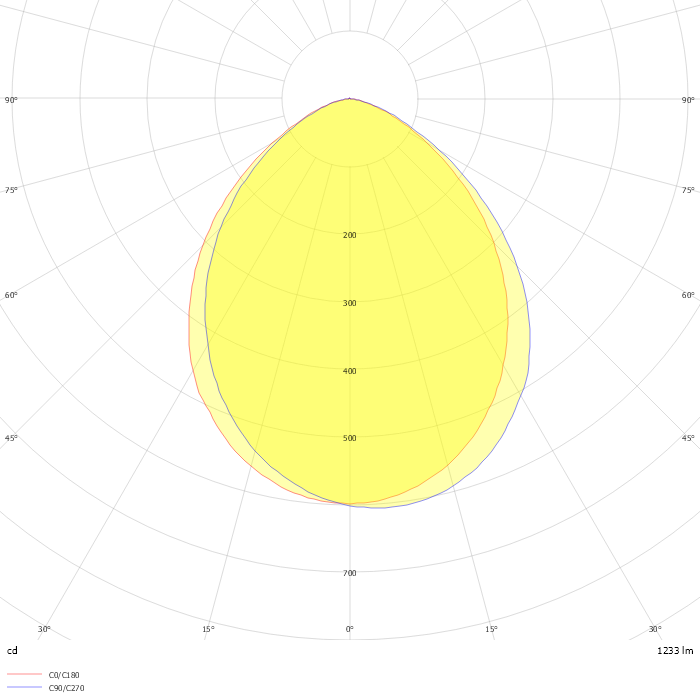

Photometric data
ZIP file
