产品资料

PRIMA 1.4ft CLASS II PC 6400/840 3F M3hAt

108973

TREVOS

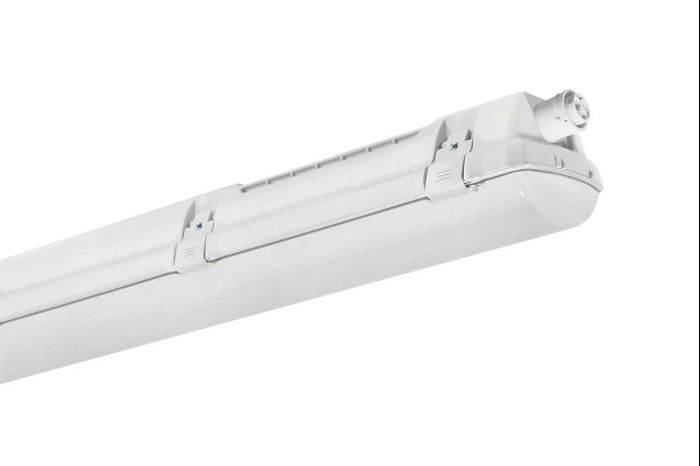

产品图片 1: PRIMA 1.4ft CLASS II PC 6400/840 3F M3hAt
产品图片 1: PRIMA 1.4ft CLASS II PC 6400/840 3F M3hAt

产品图片 1: PRIMA 1.4ft CLASS II PC 6400/840 3F M3hAt



IP
66

IK
10

resistant to dust, humidity and spraying water, the light fitting is suitable for both indoor and outdoor roofed industrial spaces; variable suspension spacing ranging from 700 - 960 mm; enable the light to be installed onto suspension fittings left over from previous lighting; optimal mounting height: 3 to 8 m; electronic driver ON/OFF (AC, DC on request), backup power supply with self-test. 3 hours operating time.; emergency back-up power supply for permanent and emergency lighting, connected to L3 (lum. flux 440lm); Body: grey PC (high mechanical resistance, UV stability, RAL 7035); Diffuser: translucent PC (high mechanical resistance, UV stability); Reflector: steel sheet, white (RAL 9003); Clips: polyamide + 15 % fibreglass; Sealing: polyurethane (PUR), foam-filled base groove; Connection: screwless four-pole terminal block, 4-wire connecting cabling for feed-through installation (1.5 mm2 cross-section, 2.5 mm2 available on demand); Power: 38,5 W; Luminaire flux: 6050 lm; Lifetime: L90/B10; 50000 hours; Impact strength: IK10; Ambient temperature: 0|40 °C; Weight: 2,1 kg;

光源种类 额定光源功率 总光通量 光效 CCT CRI
LED 2瓦 440 lm 220 lm/W 6500K 80
PRIMA 1.4ft CLASS II PC 6400/840 3F M3hAt

PRIMA 1.4ft CLASS II PC 6400/840 3F M3hAt

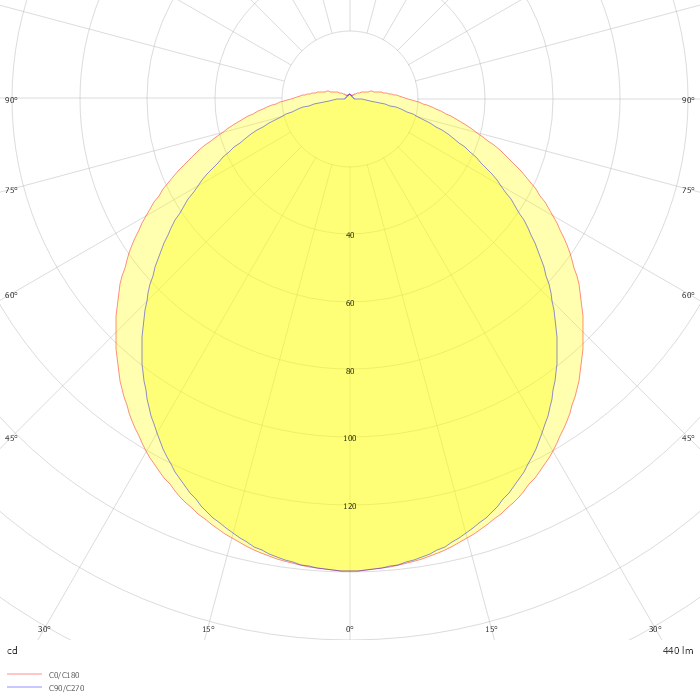

光输出 1 (整合,紧急情况)

LED

光源种类 额定光源功率 总光通量 光效 CCT CRI
LED 38.5瓦 6500 lm 169 lm/W 4000K 80
PRIMA 1.4ft CLASS II PC 6400/840 3F M3hAt

PRIMA 1.4ft CLASS II PC 6400/840 3F M3hAt

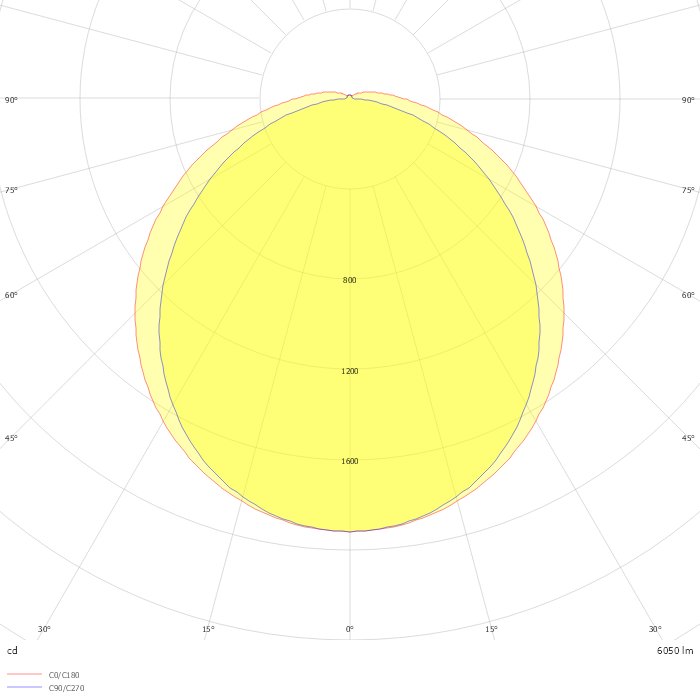

光输出 2 (整合)

LED

安装方式

吸顶式

形状和尺寸

长: 1175毫米

宽: 98毫米

高: 84毫米

可调性

固定

设计

材料效果: 塑料

外罩颜色: 银灰, 白

设计师: TREVOS

电子

系统功率: 40.5瓦

镇流器: ECG

器具类: II

紧急功能信息

补充式紧急照明

应急号志: N/A

防护

IP: 66

IK: 10

认证: CE, ENEC

其他编号

环境温度范围: 0...40°C

Photometric data

ZIP file
