An LED floodlight with asymmetric distribution for area lighting applications. Electronic,. Class II electrical, IP66, IK08. Body: die-cast aluminium (AS9U), powder coated silver-grey (RAL 9006). Enclosure: clear polycarbonate. Optics: polycarbonate. Supplied in one box, ready to install. Mounting attachments to be ordered separately. Complete with 4000K LED Dimensions: 330 x 225 x 59 mm Total power: 24 W Weight: 2.75 kg Scx: 0.07 m²
光源种类 | 额定光源功率 | 总光通量 | 光效 | CCT | CRI |
---|---|---|---|---|---|
LED | 24瓦 | 2581 lm | 108 lm/W | 3000K | 99 |
安装方式
杆顶式
形状和尺寸
长: 330毫米
宽: 225毫米
高: 59毫米
重量: 2.8 kg
设计
材料效果: 铝
外罩颜色: 银灰
电子
系统功率: 24瓦
电压: 230 V AC
器具类: II
防护
IP: 66
IK: 08
认证: CE, ENEC

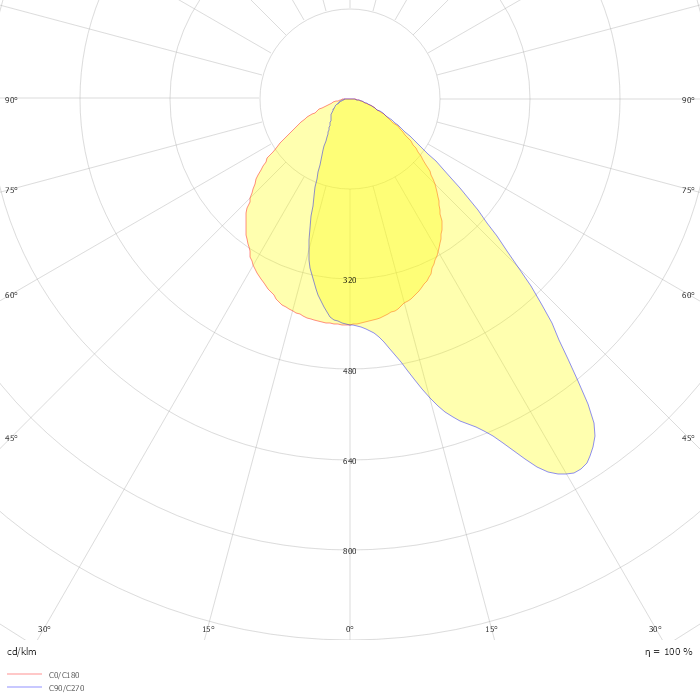

Photometric data
ZIP file
