产品资料

M5 - recessed - UGR<lt/>16 3000K CRI 90 12W CLD White

22190105-39

Disano

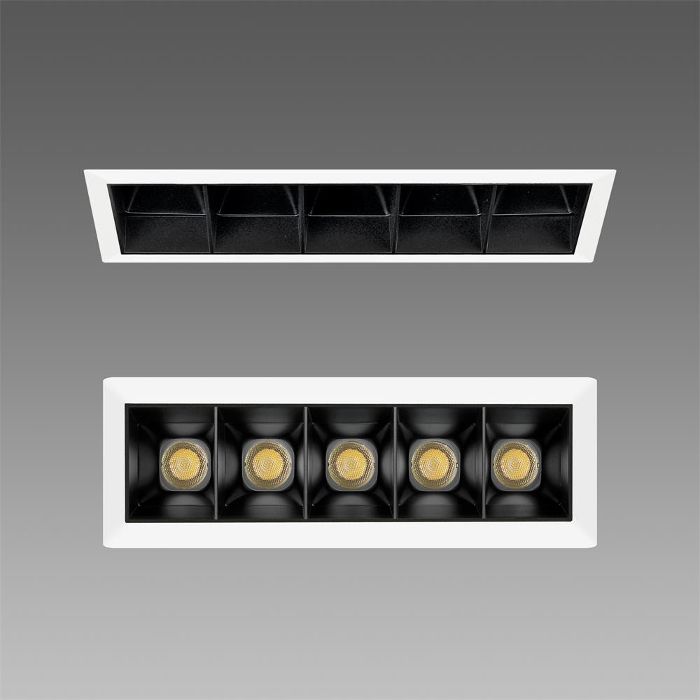

产品图片 1: M5 - recessed - UGR<lt/>16 3000K CRI 90 12W CLD White
产品图片 1: M5 - recessed - UGR<lt/>16 3000K CRI 90 12W CLD White

产品图片 1: M5 - recessed - UGR<lt/>16 3000K CRI 90 12W CLD White



IP
40

IK
07

Housing: in steel plate. Optics: anti-glare for improved visual comfort. : UGR<lt/>19, according to standard EN 12464. Coating: epoxy polyester powder coating resistant to UV rays. Heat Sink: built-in. Low flicker: luminaire with very low flicker: evenly distributed light for greater visual safety. Photobiological risk: exempt risk group according to EN62471. : EN60598-1. With degree of protection according to EN60529. Equipment: galvanised steel wire springs for false ceiling mounting. On request: version with 15° or 30° beams. Available with different aesthetic finishes to create surprising lighting effects.

现有设备 额定光源功率 光源光通量 光效 CCT CRI
1 x LED 12瓦 962 lm 80 lm/W 3000K 90
M5 - recessed - UGR<lt/>16 3000K CRI 90 12W CLD White

M5 - recessed - UGR<lt/>16 3000K CRI 90 12W CLD White

光输出1

1 x LED

安装方式

天花板嵌入式

形状和尺寸

长: 148毫米

宽: 50毫米

高: 65毫米

可调性

固定

设计

材料效果: 铝

外罩颜色: 白

电子

系统功率: 12瓦

器具类: II

防护

IP: 40

IK: 07

认证: CE

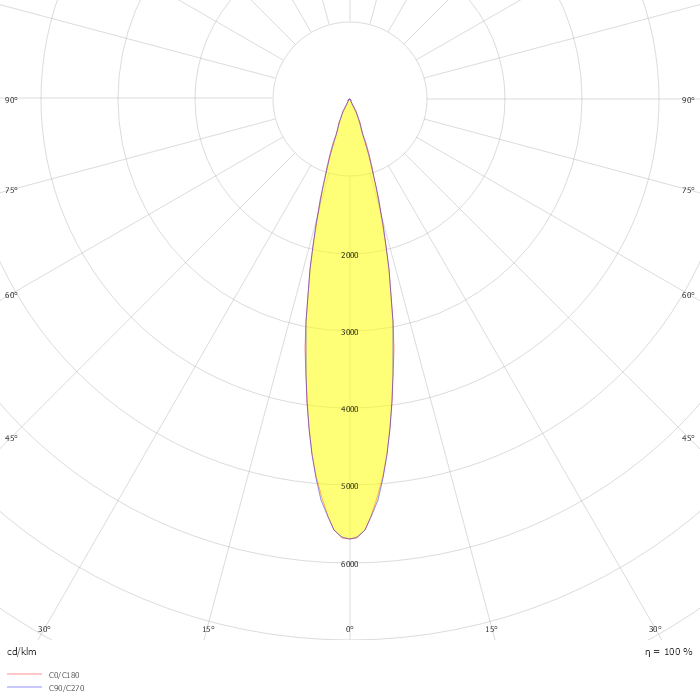

Photometric data

ZIP file
