产品资料

DUROLIGHT-C LED3800-840 HFIX L1215

96630910

Thorn Lighting

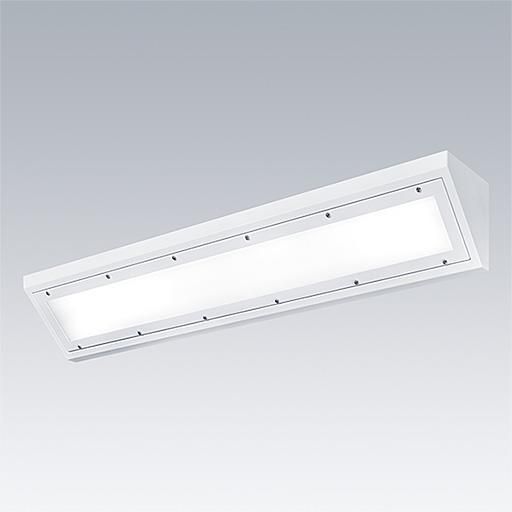

Anti-vandal surface mounted cornice LED luminaire. Electronic, DALI dimmable control gear. IP65, IK10, Class I electrical. Body: 2mm sheet steel painted white (close to RAL9016). Gasket: non-ageing polyurethane foam. Diffuser: 3mm thick polycarbonate with outstanding impact resistance, connected and secured with tamper-resistant stainless steel twin hole screws to the body. Complete with 4000K LED Dimensions: 1215 x 175 x 175 mm Total power: 42.2 W Luminaire luminous flux: 3788 lm Luminaire efficacy: 90 lm/W Weight: 11 kg

光源种类 额定光源功率 总光通量 光效 CCT CRI
LED 42.2瓦 3792 lm 90 lm/W 3000K 80
DUROLIGHT-C LED3800-840 HFIX L1215

DUROLIGHT-C LED3800-840 HFIX L1215

光输出 1 (整合)

LED

安装方式

吸顶式

形状和尺寸

长: 1215毫米

宽: 175毫米

高: 175毫米

重量: 11 kg

设计

外罩颜色: 白

电子

系统功率: 42.2瓦

电压: 220-240 V AC

控制器: DALI

器具类: I

防护

IP: 65

IK: 10

认证: CE

Photometric data

ZIP file
