产品资料

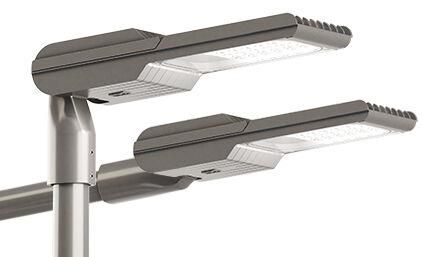

BENTO S

BENTO-S V2-ASY10-32LED-4000K-5050-1050 mA

Ragni

Made of aluminium and featuring symmetrical lines, Bento is a functional luminaire with a minimalist design available in 3 sizes. Rectangular in shape, it has a compartment at the back that houses the control gear, harmoniously joining the lighting part. The fins on the top of the luminaire promote heat dissipation. It has a double compartmentalisation and is fully IP66. Its sleeve is adaptable for side or top mounting (with inclination from -15° to 15°). Bento receives from 12 to 24 LEDs in the S version, 24 to 48 LEDs in the M version and 72 LEDs in the L version, with a colour temperature of 3000 K or 4000 K and offers 3 asymmetric light distributions. The Bento luminaire incorporates the Zhaga standard in its design.

现有设备 额定光源功率 光源光通量 光效 CCT CRI
1 x LED 104.8瓦 12945 lm 124 lm/W 4000K 70
BENTO S

BENTO S

光输出1

1 x LED

安装方式

杆顶式

形状和尺寸

长: 500毫米

宽: 200毫米

高: 100毫米

可调性

固定

电子

系统功率: 104.8瓦

防护

IP: 66

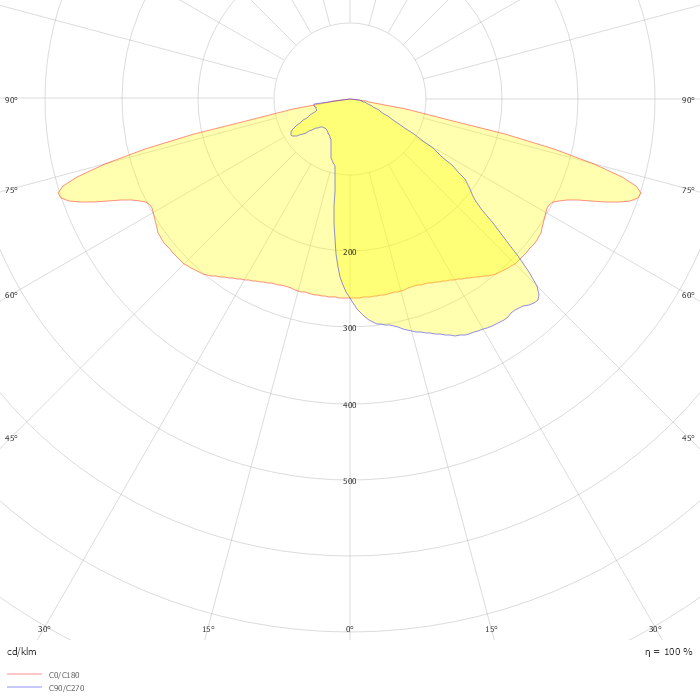

Photometric data

ZIP file
