产品资料

P-INF Q140L LED1800-930 LDO AL TL

60818219

Zumtobel

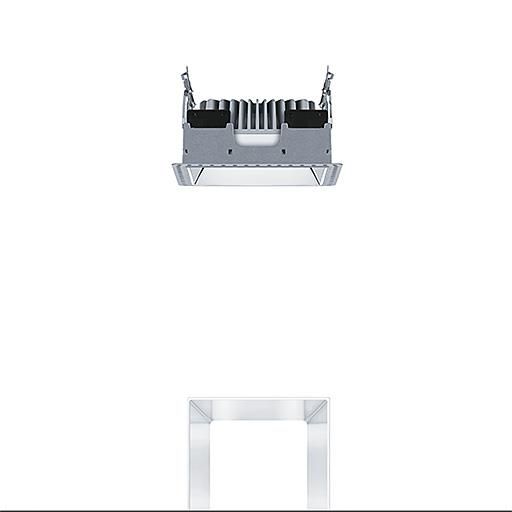

LED ceiling-recessed luminaire without trim; designed for use where space is limited in ceiling: recess depth only 100mm; "stableWhite" LED luminaire, with symmetric wide-beam light distribution with maximum luminaire efficiency and optimum photometric properties; lamp(s): LED1800-930; Colour rendering Ra > 90, colour temperature 3000 K (warm white); Chromaticity tolerance (initial MacAdam): 2; total power: 15 W; Luminaire luminous flux: 1750 lm, Luminaire efficacy: 117 lm/W; service life: 50000h at 95% luminous flux; includes separate control unit Slave luminaire for DALI control (DALI only); high-quality reflector unit fixed to modular LED lighting chamber by catch mechanism; high-efficiency LED lighting chamber is integrated in optimised, passive thermal management system of diecast aluminium; reflector: smooth, highly reflective aluminized finish, iridescence-free; reflector made of high-quality, UV-resistant polycarbonate; luminaire unit can be fitted quickly without tools using EASY-CLICK catch; IP44_IP20; luminaire wired with halogen-free leads; power connection: 5-pole connector terminal, loop-in/loop-out possible; mains voltage: 220-240V / 0/50/60Hz, for use with 220V DC central battery; tool-free quick installation using spring clips in ceilings of thickness 1-25mm; ceiling cutout: 140x140 mm, recessed depth: 100mm; weight: 0.77 kg; Note: Please order seating surround (planar surround) separately for installing the luminaire flush with the ceiling (see Accessories); to achieve EN12464 compliance in office applications (UGR<19, aluminized reflector type), please order an additional antiglare surround

现有设备 额定光源功率 光源光通量 光效 CCT CRI
1 x LED 15瓦 2000 lm 117 lm/W 3000K 90
P-INF Q140L LED1800-930 LDO AL TL

P-INF Q140L LED1800-930 LDO AL TL

光输出1

1 x LED

安装方式

天花板嵌入式

形状和尺寸

长: 158毫米

宽: 158毫米

高: 103毫米

重量: 0.8 kg

设计

材料效果: 铝

外罩颜色: 白

电子

系统功率: 15瓦

电压: 220-240 V AC

控制器: DALI

器具类: II

防护

IP: 20

认证: CE, ENEC

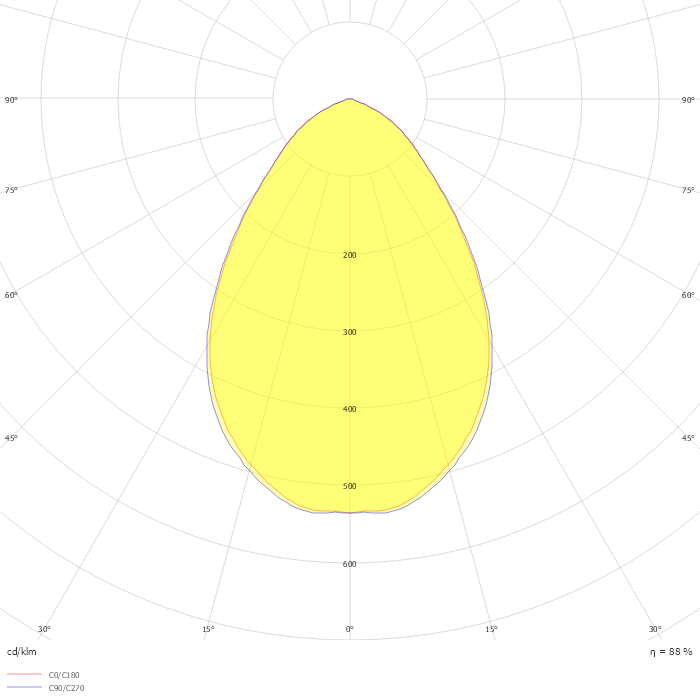

Photometric data

ZIP file
