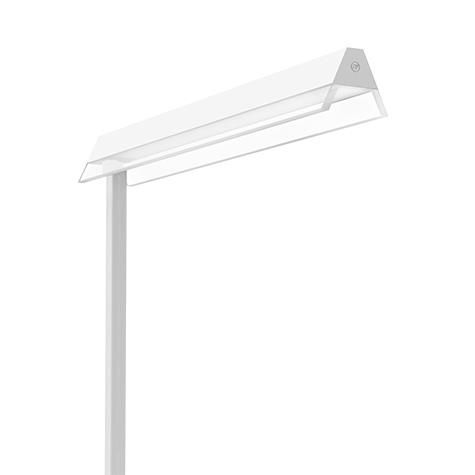

ILLUMINOTECHNICAL Luminous efficiency 100% (DLOR 42%, ULOR 58%). Initial luminous flux of the luminaire 7042 lm. Direct-indirect distribution. Installation Interdistance Transv.D = 1.13 x hu - Long.D = 1.19 x hu. Average luminance <3000 cd/m² for radial angles >65°. Tabular UGR (CIE 117 - 4H-8H; S=0.25H; 70/50/20): RUG 13.5 - 15.7. Beam angle: 80° - 88°. Luminous efficacy 135 lm/W. Lifetime (L93/B10): 30000 h. (tq+25°C) Lifetime (L90/B10): 50000 h. (tq+25°C) Lifetime (L85/B10): 80000 h. (tq+25°C) Lifetime (L80/B10): 100000 h. (tq+25°C) Sudden decreased luminous flux after 50000 hours: 0% (C0). Photobiological safety in compliance with IEC/TR 62778: RG0 risk exempt, (IEC 62471). In compliance with IEC/EN 62722-2-1 - IEC/EN 62717 standards. SOURCE 2 linear LED modules 23W/840. Energy efficiency class (UE 2019/2020 - UE 2019/2015): C. CIE 13.3 Colour rendering index: CRI >80 (R9 <50%). IES TM-30 Fidelity Index: Rf = 84 Rg = 95. CCT nominal colour temperature 4000 K. Colour initial tolerance (MacAdam): SDCM 3. MECHANICAL Housing in white painted extruded aluminium. Heads in white painted zamak. Pole in white painted stainless steel with a 30x30 mm square section fixed on a white painted steel base, dimensions 290x480 mm. Methacrylate (PMMA) primary lens for total source shielding. Anti-glare opal polycarbonate filter for brightness uniformity. External lens of particular aesthetic value in satin methacrylate (PMMA). Upper cover in transparent polycarbonate. Luminaire with limited surface temperature. - D - (EN 60598-2-24) Dimensions: 843x280 mm, height 2060 mm. Weight 15 kg. IP40 protection degree. Mechanical strength to impacts IK06 (1 joule). Glow-wire test resistance 650°C. ELECTRICAL Halogen Free TOUCH DALI, PUSH-DIM, electronic wiring 230V-50/60Hz, power factor 0.95 at full load, THD <25%, constant output current, SELV, class I, 2 driver, 2 DALI addresses. TOUCH DALI control integrated in the stem. Power of the luminaire 52 W. CE - IEC 60598-1 - EN 60598-1. SAFE FLICKER: PstLM=<1 and SVM=<0.4 (IEC TR 61547-1 and IEC TR 63158), to ensure a more comfortable and safe light. Ambient temperature from 0°C to +25°C. Temperature class T6 max 85°C. Relative humidity UR: <85%. INSTALLATION Floor. SUPPLIED Power supply with a 2.5 m long transparent cable, schuko plug. APPLICATIONS Free and flexible positioning for localized lighting on the workstation. Environments where for technical reasons ceiling light points and environments with severe visual tasks cannot be equipped, where diffused and soft lighting is required for optimum visual comfort of the environment and total shielding of the source. In environments with VDTs, managerial offices and staterooms. LIGHT MANAGEMENT Recommended minimum setting: 10%. The TOUCH DALI control integrated in the stem, allows independent switching on, off and adjustment of the two emissions. WARNING Luminaire designed for disposal/recycling at end-of-life. Replaceable (LED only) light source by a professional. Replaceable control gear by a professional.
