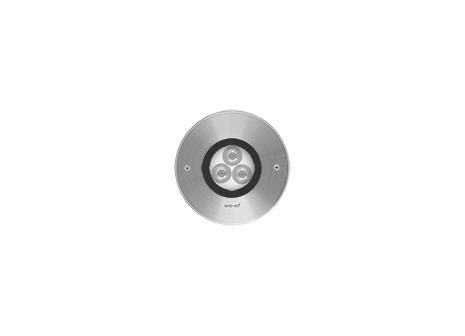

EVC310-FS [EE] VA:IP67:LED-3/6W/3K + IO-180°

185-9936

we-ef

IP67, Class I. IK10+. Stainless steel construction including PCS hardware. Safety glass lens, max. load 5 tonnes. Luminaire can be driven over at low speed. Silicone rubber gasket. Factorysealed termination chamber with cable gland and 0.5 m of flexible PVC-free cable. Integral EC electronic converter. Advanced thermal management protects LEDs while optimising lumens output. LED module can be easily removed for upgrading. CAD- optimised optics for superior illumination and glare control. Luminaire requires installation blockout and sealable junction box, which are included in supply. ASC Anti Slip Coating on request.

现有设备 额定光源功率 光源光通量 光效 CCT CRI
3 x LED 2瓦 246 lm 67 lm/W 3000K 80
EVC310-FS [EE] VA:IP67:LED-3/6W/3K + IO-180°

EVC310-FS [EE] VA:IP67:LED-3/6W/3K + IO-180°

光输出1

3 x LED

安装方式

埋地式

形状和尺寸

高: 100毫米

直径: 115毫米

电子

系统功率: 7.7瓦

器具类: I

防护

IP: 67

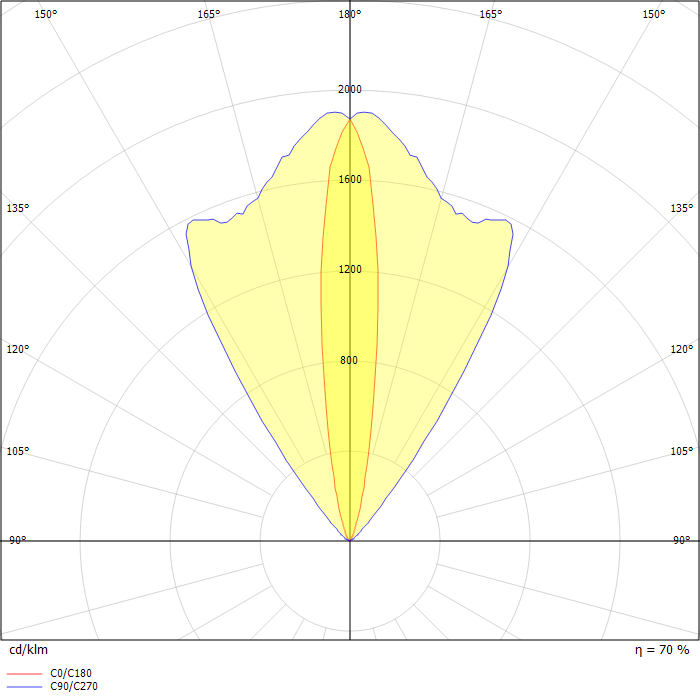

Photometric data

ZIP file
