产品资料

LD782 1.6W 500mA NB

LD782-E3-500-NB

LightGraphix

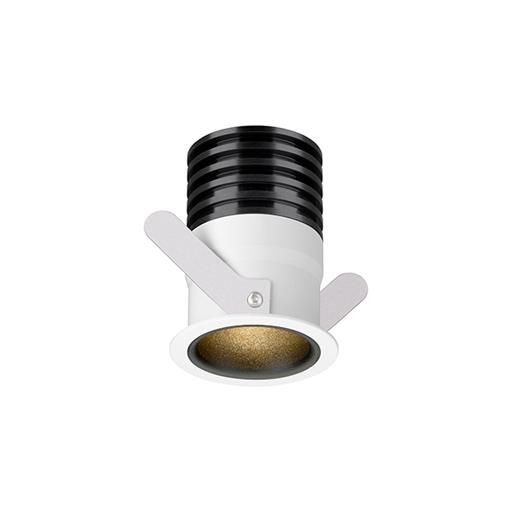

LD782 Ø46mm Recessed Uplight. Constant Current. 1.6W 500mA 12° Narrow spot beam. The compact LD782 has an excellent size to output ratio with a deep recessed LED which makes it ideal for general downlighting and the highlighting of walls and columns within interior, exterior and marine applications. Featuring as standard a matt black inner baffle for ultra-low glare, this along with the bezel can be painted in a wide range of colours offering endless styling options to suit your design scheme requirements. Available LED engines include E3 and F1, offering colour temperatures of 2200K-5000K and a variety of beam angles, including a tight 12° narrow beam with medium options for general downlighting. Though compact, the LD782 provides brilliant thermal and light output performance, with a single optic generating a superior beam shape and no multiple shadows.

光源种类 额定光源功率 总光通量 光效 CCT CRI
LED 6.4瓦 420 lm 66 lm/W 3000K 85
LD782 1.6W 500mA NB

LD782 1.6W 500mA NB

光输出 1 (整合)

LED

安装方式

天花板嵌入式

形状和尺寸

高: 60毫米

直径: 46毫米

可调性

固定

设计

材料效果: 暗淡

外罩颜色: 黑

电子

系统功率: 6.4瓦

控制器: 可调 0..10V, 可调 1..10V, DMX, DALI

器具类: III

防护

IP: 65

认证: CE

其他编号

环境温度范围: -20...35°C

Photometric data

ZIP file
