产品资料

LOGIC LINEAR 880 94015

30820 9410

Delta Light

Luminaire, floor recessed (outdoor use) from Deltalight, named LOGIC LINEAR 880 94015, available in the colour(s): inox. For recessed mounting, a rectangular opening (for installing a custom mounting kit) is needed and a min. depth for recessing of 140 mm. This luminaire is equipped with LED cluster 28,8W / CRI>90 (R9: 62) / 4000K / 3898lm with build-in driver to operate on a voltage of 220-240V / 0|50-60Hz. Not dimmable Light distributor: lens 15°.

现有设备 额定光源功率 光源光通量 光效 CCT CRI
1 x LED 33瓦 3898 lm 118 lm/W 4000K 90
LOGIC LINEAR 880 94015

LOGIC LINEAR 880 94015

光输出1

1 x LED

安装方式

埋地式

形状和尺寸

长: 926毫米

宽: 83毫米

高: 3毫米

电子

系统功率: 33瓦

器具类: 0

防护

IP: 67

IK: 09

认证: CE

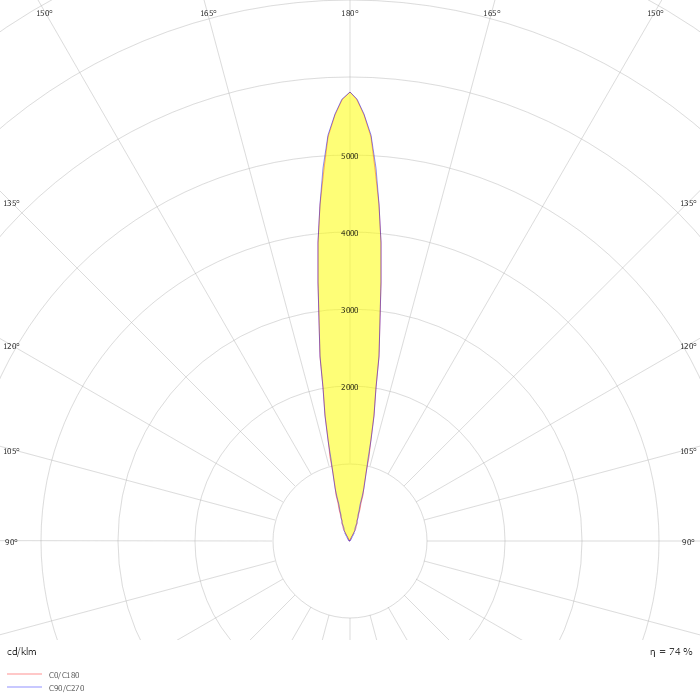

Photometric data

ZIP file
