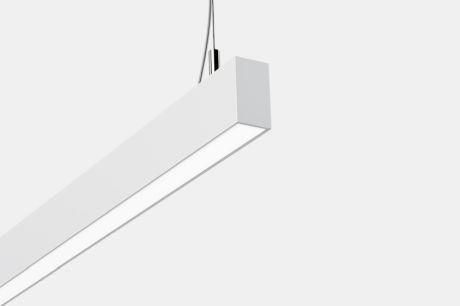

FX35-P1012 0/100 1500 830 OP

Glamox

Light source LED 1400 - 5600 lumen out Colour temperature 3000/4000 Kelvin, CRI Ra 80, MacAdams 3. Driver Available with constant light (HF) and dimmable (DALI) drivers. Driver life time up to 100.000 h/10 % (max failure) at Ta 25°C. Body material & colour Body in extruded anodized aluminum with end caps in die-casted aluminum. Could also be delivered in white or black. Mounting For pendent or surfaced mounting. Suspension wire and bracket for surfaced mounting has to be ordered separately. See accessories. Accessories Suspension wire and bracket for surfaced mounting has to be ordered separately. Connection Supplied with 2,5m cable Optics Available with Opal diffuser (OP), Microprismatic diffuser (MP) black reflector (BL) and parabolic louvers (SL). Emergency system Available with integrated emergency (1h), Self test (ST) or DALI.

光源种类 额定光源功率 总光通量 光效 CCT CRI
LED 12瓦 1400 lm 117 lm/W 3000K 80
FX35-P1012 0/100 1500 830 OP

FX35-P1012 0/100 1500 830 OP

光输出 1 (整合)

LED

安装方式

悬吊式

形状和尺寸

长: 1012毫米

宽: 35毫米

高: 65毫米

可调性

调整高度

电子

系统功率: 12瓦

防护

IP: 20

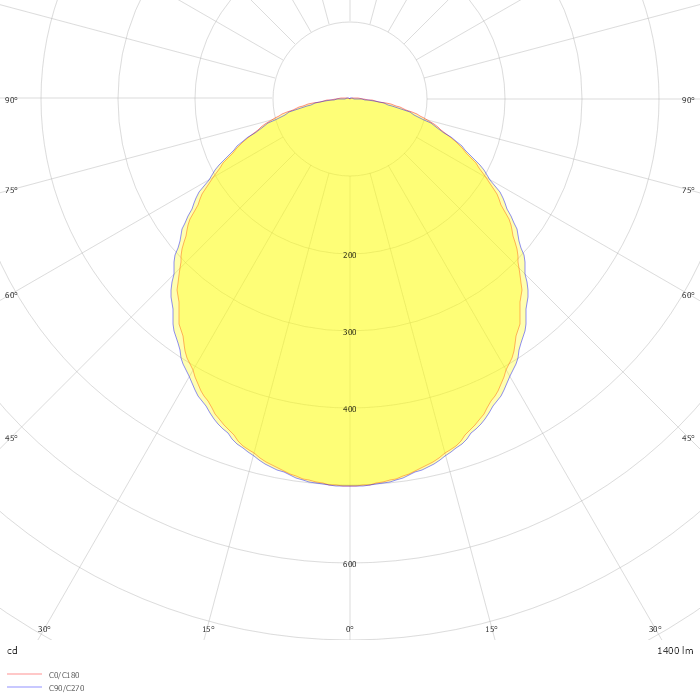

Photometric data

ZIP file
