产品资料

FLEUR TREE 120CM LED 1,2W PROJECTOR Ottica/M 24°

840970_12/PR/M

Exenia

产品图片 1: FLEUR TREE 120CM LED 1,2W PROJECTOR Ottica/M 24°
产品图片 1: FLEUR TREE 120CM LED 1,2W PROJECTOR Ottica/M 24°

产品图片 1: FLEUR TREE 120CM LED 1,2W PROJECTOR Ottica/M 24°



IP
65

Versatile lighting system for diffused and accent lighting needs, completely mimetic. FLEUR is constituted by flexible stems with reinforced terminals in powder-painted brass and steel. The LED lighting elements can be configured as a projector, available in Spot 12°, Medium 24° or Wide 41°, or with a spherical or conical diffuser for omnidirectional lighting. Each stem hosts a nominal Led 1.2W (120lm) in 2700K, 3000K or 4000K in CRI85, with a lifetime of 100,000 hours at L80 B10. Mounting options for FLEUR include picket, tree, recessed and surface installation. FLEUR recessed and surface versions are available with two or three individually configurable stems, while the picket and tree versions are configured with a single stem. The brass and steel mounting base and the optical assemblies are available in a selection of powder paint finishes including charcoal grey, mud brown, sand and corten. The FLEUR stems are coated with a high-strength hazelnut textile sheath. Degree of protection IP65. Class III device with a selection of remote drivers.

光源种类 额定光源功率 总光通量 光效 CCT CRI
LED 1.4瓦 74 lm 53 lm/W 3000K 85
FLEUR TREE 120CM LED 1,2W PROJECTOR Ottica/M 24°

FLEUR TREE 120CM LED 1,2W PROJECTOR Ottica/M 24°

光输出 1 (整合)

LED

安装方式

立式 / 矮柱, 落地式, 埋地式

形状和尺寸

长: 38毫米

宽: 55毫米

高: 28毫米

可调性

调整不受限

电子

系统功率: 1.4瓦

器具类: III

防护

IP: 65

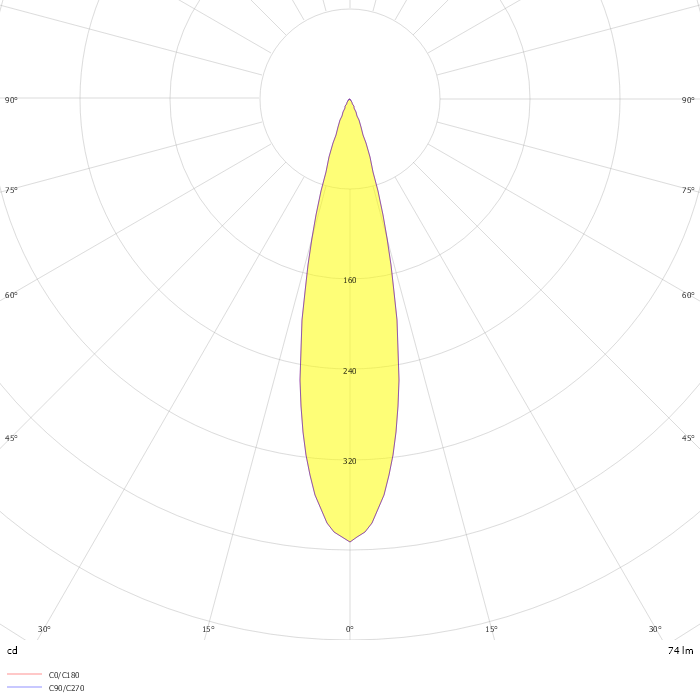

Photometric data

ZIP file
